FEATURES
|
|
Through switching the pressure selector, you can
notice six different pressure values by connecting one gauge on it. The
advantages of this particular product are space saving, easy
installation, and decent outlook for circuit design.
Both lids and turning part are made of aluminum
alloy, and the main body is made of casting iron.
Max. operating pressure : 400 bar (407 kgf/cm2)
Temperature tolerance : -30 ~ 100°C
Weight : 1.50kg
|
|
SYMBOLS
|
|
|
|
|
|

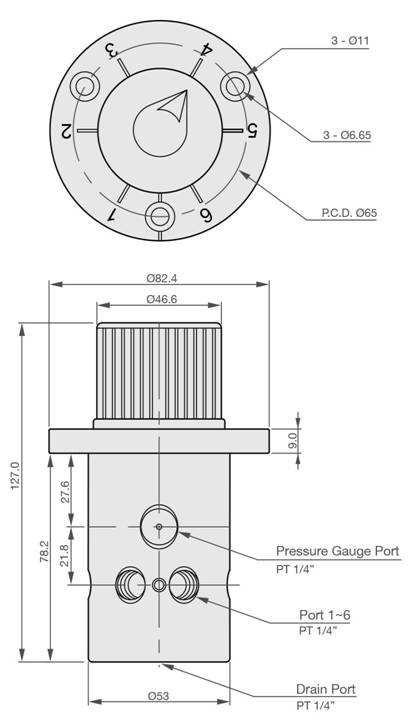

DIMENSION (UNIT : mm)
|
|
|
|
|
