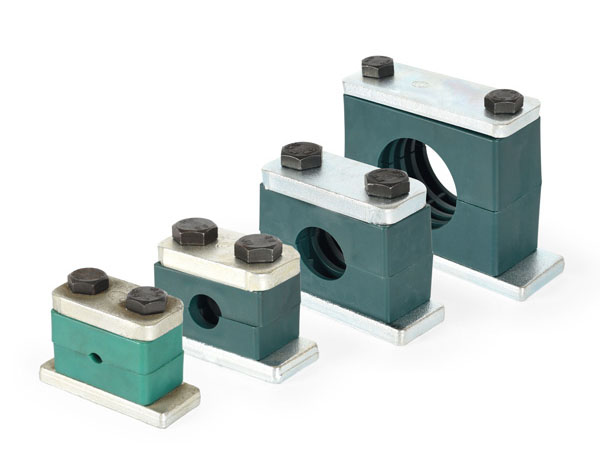

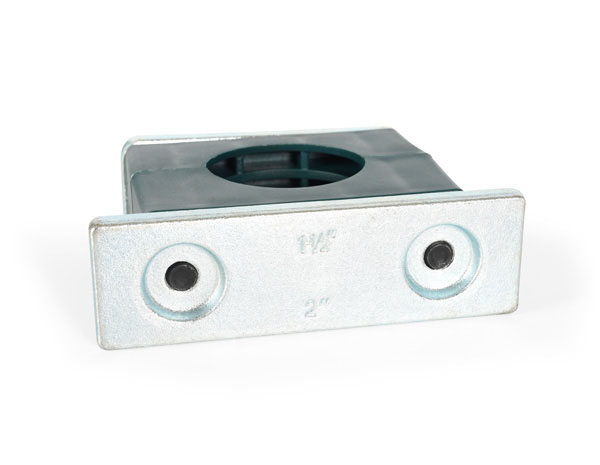

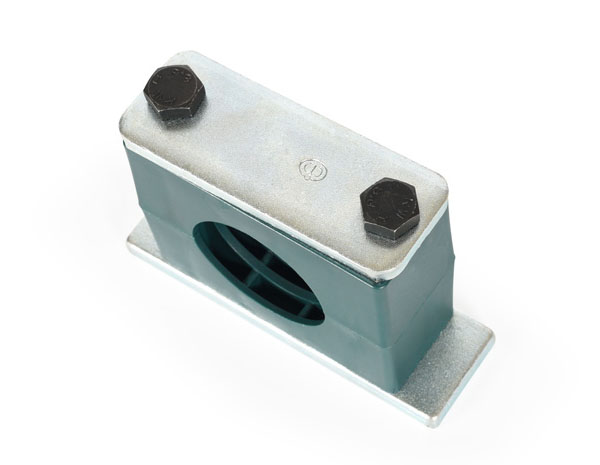

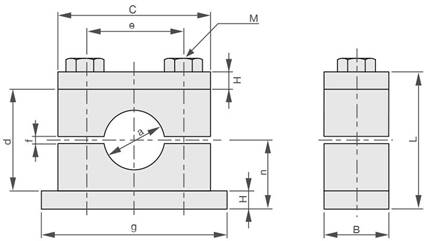

DIMENSION (UNIT : mm)
|
|
|
|
Model
|
Size
( inch )
|
Øa
( mm )
|
Meter
( mm )
|
B
|
C
|
d
|
|
PPH-06A
|
1/8"
|
10.5
|
8,
10, 12, 12.7, 15, 16
|
30
|
55
|
32
|
|
PPH-08A
|
1/4"
|
13.8
|
|
PPH-10A
|
3/8"
|
17.2
|
|
PPH-15A
|
1/2"
|
21.3
|
19,
20, 25
|
30
|
70
|
48
|
|
PPH-20A
|
3/4"
|
26.7
|
|
PPH-25A
|
1"
|
33.4
|
30,
32, 38
|
30
|
85
|
60
|
|
PPH-32A
|
1
1/4"
|
42.2
|
|
PPH-40A
|
1
1/2"
|
48.3
|
-
|
45
|
115
|
90
|
|
PPH-50A
|
2"
|
60.3
|
|
PPH-65A
|
2
1/2"
|
76.1
|
-
|
60
|
152
|
114.5
|
|
PPH-80A
|
3"
|
88.9
|
|
PPH-90A
|
3
1/2"
|
102
|
-
|
80
|
205
|
174
|
|
PPH-100A
|
4"
|
114.3
|
|
PPH-125A
|
5"
|
141.3
|
-
|
80
|
245
|
200
|
|
PPH-150A
|
6"
|
168.3
|
|
PPH-200A
|
8"
|
219.1
|
-
|
120
|
320
|
270
|
|
Model
|
e
|
f
|
g
|
H
|
L
|
n
|
M
|
|
PPH-06A
|
33
|
2
|
73
|
8
|
48
|
24
|
M10
x L45
|
|
PPH-08A
|
|
PPH-10A
|
|
PPH-15A
|
45
|
2
|
85
|
8
|
64
|
32
|
M10
x L60
|
|
PPH-20A
|
|
PPH-25A
|
60
|
2
|
100
|
8
|
76
|
38
|
M10
x L70
|
|
PPH-32A
|
|
PPH-40A
|
90
|
3
|
150
|
10
|
110
|
55
|
M12
x 100L
|
|
PPH-50A
|
|
PPH-65A
|
122
|
3
|
180
|
10
|
140
|
70
|
M16
x L130
|
|
PPH-80A
|
|
PPH-90A
|
168
|
3
|
225
|
15
|
200
|
100
|
M20
x L190
|
|
PPH-100A
|
|
PPH-125A
|
205
|
4
|
270
|
15
|
230
|
115
|
M20
x L220
|
|
PPH-150A
|
|
PPH-200A
|
265
|
4
|
340
|
25
|
320
|
160
|
M30
x L300
|
|
|
|
|
