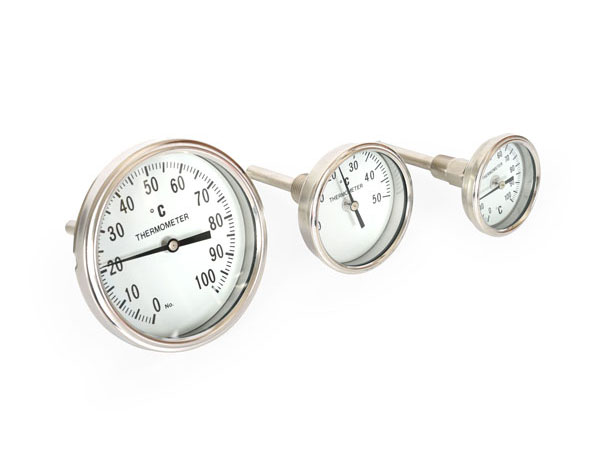

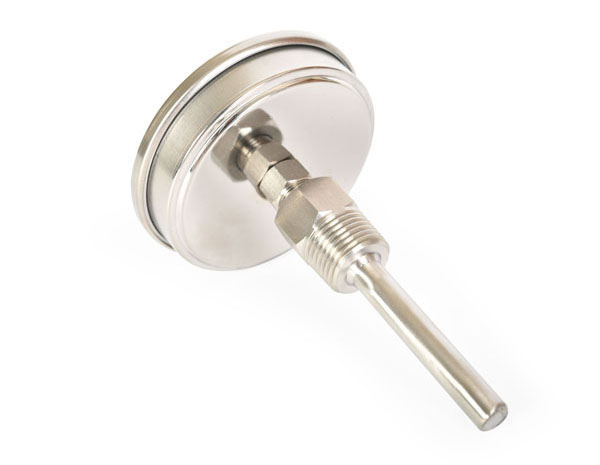

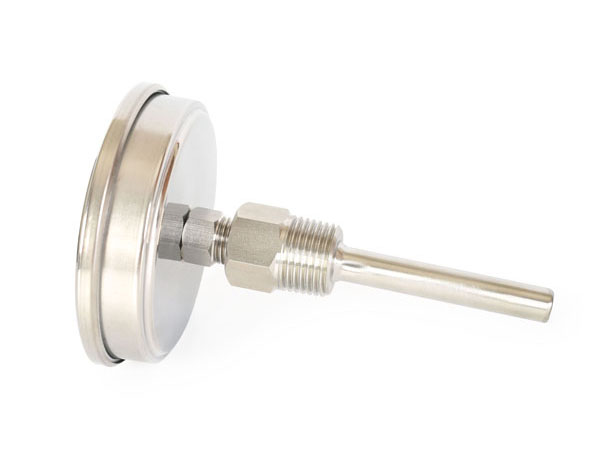

MODEL SPEC.
|
|
Model
|
BL
|
Housing
Material
|
SUS304 *
|
Capillary
Material
|
SUS304 *
|
Temperature
Range
|
-50 ~ 600°C
|
Accuracy
|
±1.0%
|
|
Model
|
Cover
|
Gauge Size
|
Connection Thread and Size
|
The Diameter of The Stick
|
The Length of The Stick (F)
|
BL-1
|
|
1"
|
PT
M8
x P1.25
1/8”,
1/4", 3/8", 1/2"
|
S304:
4, 5, 6, 6.3,
8, 9.5, 12, 15mm
S316 *:
6.3, 8, 9.5, 12mm
|
30 ~ 150cm *
|
BL-1.5
|
|
1.5"
|
BL-1.6
|
|
1.6"
|
BL-2
|
|
2"
|
BL-2.5
|
|
2.5"
|
PT,
NPT, PF
1/8”,
1/4", 3/8", 1/2", 3/4", 1"
(S304,
S316 *)
|
BL-3
|
|
3"
|
BL-3
|
|
3"
|
BL-4
|
|
4"
|
BL-4
|
|
4"
|
BL-5
|
|
5"
|
BL-6
|
|
6"
|
|
* The regualr products total length are 30 ~ 150cm.
If you need taylor made service, please contact us.
* The material SUS316 is option.
|

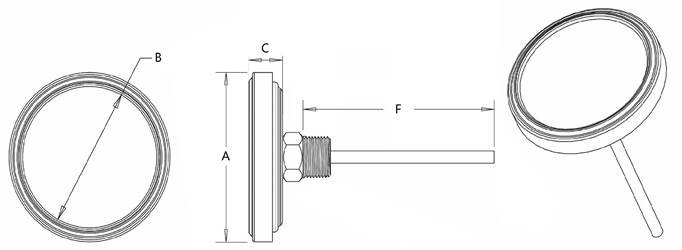

SYMBOLS
|
|
|
|
DIMENSION (UNIT : mm)
|
|
Model
|
Cover
|
Gauge Size
|
A
|
B
|
C
|
F
|
BL-1
|
|
1"
|
26
|
22
|
9
|
300 ~ 1500
|
BL-1.5
|
|
1.5"
|
35
|
26.5
|
11.5
|
BL-1.6
|
|
1.6"
|
40
|
32
|
12
|
BL-2
|
|
2"
|
51
|
44
|
11
|
BL-2.5
|
|
2.5"
|
65
|
55
|
18
|
BL-3
|
|
3"
|
80
|
70
|
20
|
BL-3
|
|
3"
|
84
|
70
|
17.5
|
BL-4
|
|
4"
|
108
|
89
|
24
|
BL-4
|
|
4"
|
118
|
101
|
21
|
BL-5
|
|
5"
|
130
|
113.5
|
21
|
BL-6
|
|
6"
|
160
|
140
|
25
|
|
|
