MODEL SPEC.
Model
BS
Housing Material
SUS304 *
Capillary Material
Temperature Range
-50 ~ 600°C
Accuracy
±1.0%
Gauge Size
Connection Thread and Size
The Diameter of The Stick
The Length of The Stick (H)
BS-2.5
2.5
PT, NPT, PF
1/8”, 1/4", 3/8", 1/2", 3/4", 1"
(S304, S316 *)
S304:
4, 5, 6, 6.3, 8, 9.5, 12, 15mm
S316 *:
6.3, 8, 9.5, 12mm
30 ~ 150cm *
BS-3
3"
BS-4
4"
BS-5
5"
BS-6
6"
* The regualr products total length are 30 ~ 150cm. If you need taylor made service, please contact us.
* The material SUS316 is option.
SYMBOLS

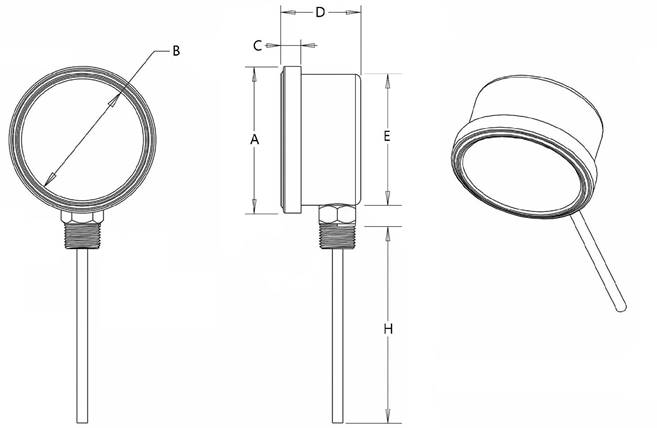

DIMENSION (UNIT : mm)
A
B
C
D
E
H
69
56
14
35
63
300 ~ 1500
84
79
12
47
75
110
98
17
52
101
130
113.5
13.5
51
117
160
140
48
148
