MODEL SPEC.
Model
BA
Housing Material
SUS304 *
Capillary Material
Temperature Range
-50 ~ 600°C
Accuracy
±1.0%
Gauge Size
Connection Thread and Size
The Diameter of The Stick
The Length of The Stick (F)
BA-2
2"
PT, NPT, PF
1/8”, 1/4", 3/8", 1/2", 3/4", 1"
(S304, S316 *)
S304:
4, 5, 6, 6.3, 8, 9.5, 12, 15mm
S316 *:
6.3, 8, 9.5, 12mm
30 ~ 150cm *
BA-2.5
2.5"
BA-3
3"
BA-4
4"
BA-5
5"
BA-6
6"
* The regualr products total length are 30 ~ 150cm. If you need taylor made service, please contact us.
* The material SUS316 is option.
SYMBOLS

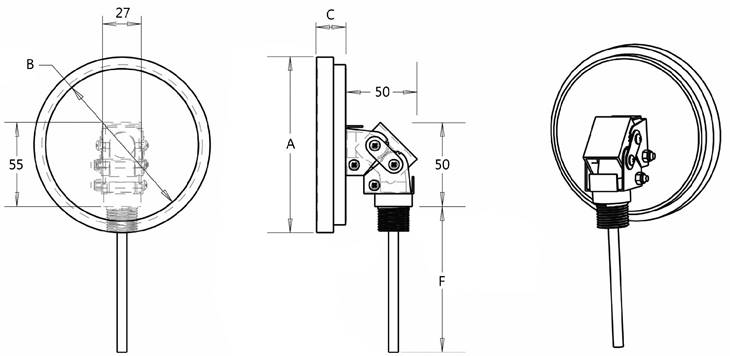

DIMENSION (UNIT : mm)
A
B
C
F
51
44
11
300 ~ 1500
65
55
18
80
70
20
84
17.5
108
89
24
118
101
21
130
113.5
160
140
25
