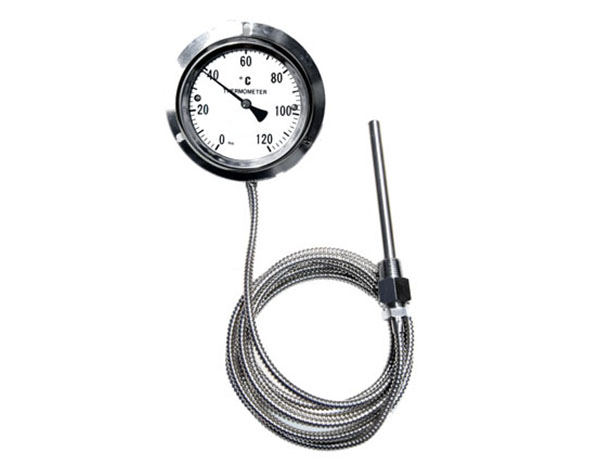

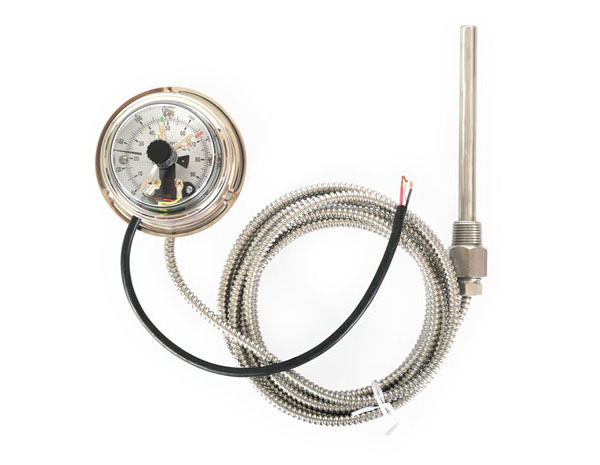

MODEL SPEC.
|
|
|
Model
|
CF
|
|
Housing
Material
|
SUS304 *
|
|
Capillary
Material
|
SUS304 *
|
|
Temperature
Range
|
-50 ~ 600°C
|
|
Accuracy
|
±1.0%
|
|
|
Model
|
Gauge Size
|
Connection Thread and
Size
|
The Diameter of The Stick
|
The Length of The Stick (H)
|
|
CF-3
|
3"
|
PT, NPT, PF
1/4", 3/8", 1/2", 3/4", 1"
(S304, S316 *)
|
S304:
6,
6.3, 8, 9.5, 12, 15mm
S316
*:
6.3, 8, 9.5, 12mm
|
30 ~ 150cm *
|
|
CF-4
|
4"
|
|
CF-5
|
5"
|
|
CF-6
|
6"
|
|
* The regualr products total length
are 30 ~ 150cm. If you need taylor made service, please contact us.
* The material SUS316 is option.
|
|

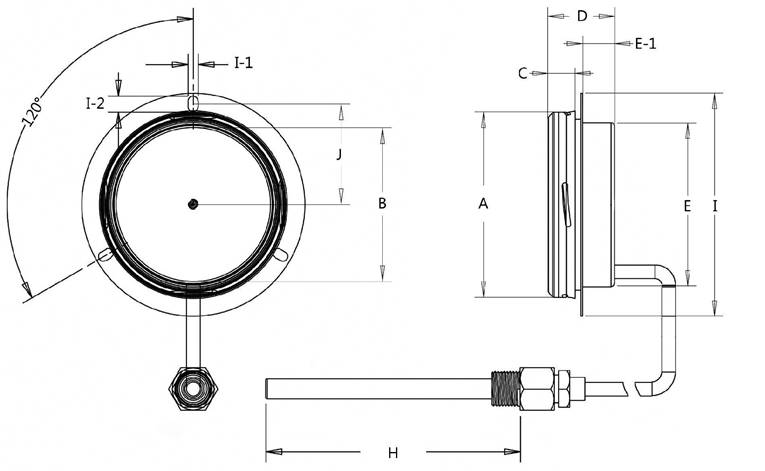

SYMBOLS
|
|
|
|
|
|
DIMENSION (UNIT
: mm)
|
|
|
|
Model
|
Gauge Size
|
A
|
B
|
C
|
D
|
E
|
E-1
|
I
|
I-1
|
I-2
|
J
|
H
|
|
CF-3
|
3"
|
84
|
79
|
12
|
47
|
75
|
34
|
104
|
4
|
4
|
44
|
300 ~ 1500
|
|
CF-4
|
4"
|
110
|
89
|
16
|
38
|
98.5
|
21
|
132
|
6
|
10
|
60
|
|
CF-5
|
5"
|
130
|
110
|
13.5
|
51
|
117
|
35.5
|
160
|
6
|
6
|
73
|
|
CF-6
|
6"
|
160
|
130
|
17
|
48
|
148
|
29
|
198
|
6
|
6
|
9
|
|
|
