MODEL SPEC.
|
|
|
Model
|
SDPG32-R
|
|
Pressure
Ranges (PSI)
|
150, 600, 1500, 3500, 6000
|
|
Accuracy
|
±0.2% full scale
|
|
Output
Type
|
4 digits LCD
|
|
Keypad
Operated Functions
|
peak hold, zero adjustment,
memery, curve.
|
|
Supply
Voltage
|
4.7V battery
|
|
Automatic
Shutoff Time
|
3 minutes
|
|
Life
Span
|
84000 hours ( 700 times x
120 hours )
|
|
Operating
Temperature
|
-10 ~ 50°C
with temperature compensated
|
|
Water
Resistant Level
|
NEMA 4X (IP65)
|
|
Options
of Pressure Unit
|
PSI, Bar, Mpa, kg/cm2
|
|
Media
Isolation
|
304L SS diaphragm
|
|
Thread
Connection
|
304L SS, 1/4 PT, NPT, BSPP, SAE 6
|
|
Chemical
Compatibilities
|
any gas or liquid with
chemically compatible to 304L SS
|
|
Typical
Applications
|
process control, refrigeration,
fuel cells,
pumps, hydraulics, pneumatics,
compressors, waste water, agriculture
|
|
Weight
(kg)
|
0.41
|
|
|
|
ORDER CODES
|
|
|
SDPG32 - R - 1500 - P
a -
b - c - d
a. Model
Name : SDPG32
b. Mounting
Type : R:rear
b. Pressure
Range : 150, 600, 1500, 3500, 6000PSI
c. Thread
Connection :
P:1/4 PT
N:1/4 NPT
B:1/4 BSPP
S:SAE 6
|
|
|
SYMBOLS
|
|
|
|
|
|

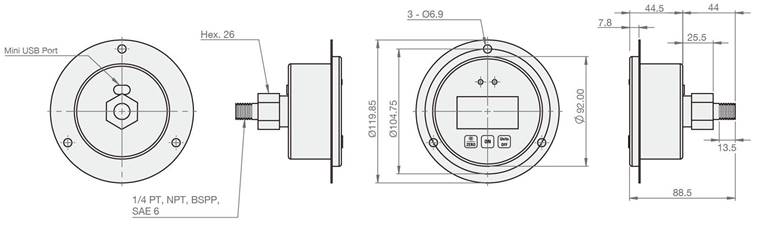

DIMENSION (UNIT
: mm)
|
|
|
|
|
|
|
