MODEL SPEC.
Model
ST03-10
Pressure Range ( MPa )
0 ~ 100
Accuracy
±0.5% full scale
Stability
≤0.2% / 1year
Proof Pressure
1.5 x F.S.
Supply Voltage
12 ~ 32 VDC
Output Signal
4~20mA, 0~10V, 0~5V, 0.5~4.5V
Operating Temperature
-30 ~ 80°C
Storage Temperature
-40 ~ 120°C
Water Resistant Level
IP65
Thread Connection
BSPP 1/4"
Weight ( kg )
0.25
ORDER CODES
ST03 / 2 - 10 - 2 - 10
a - b - c - d
a. Thread Connection :
2:BSPP 1/4”
b. Pressure Range ( MPa ) :
1:0 ~ 1
2:0 ~ 2
3:0 ~ 5
4:0 ~ 7
5:0 ~ 10
6:0 ~ 16
7:0 ~ 20
8:0 ~ 25
9:0 ~ 35
10:0 ~ 40 ( standard )
11:0 ~ 60
12:0 ~ 100
c. Output Type :
1:4~20mA
2:0~10V
3:0~5V
4:0.5~4.5V
d. Model Name :
10:ST03-10
SYMBOLS

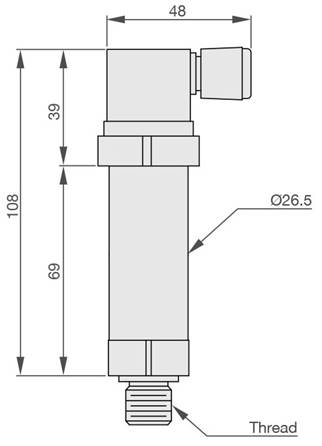

DIMENSION (UNIT : mm)
