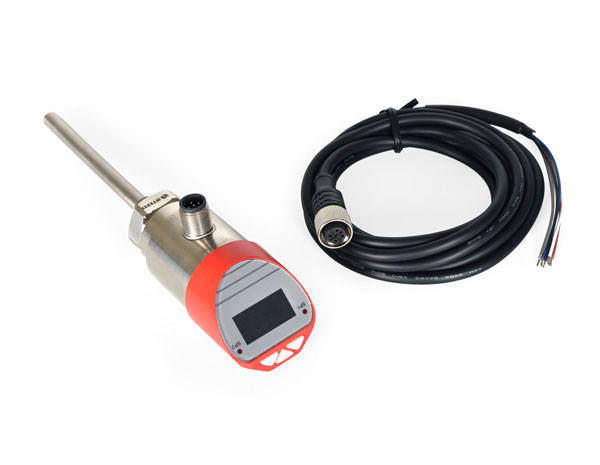

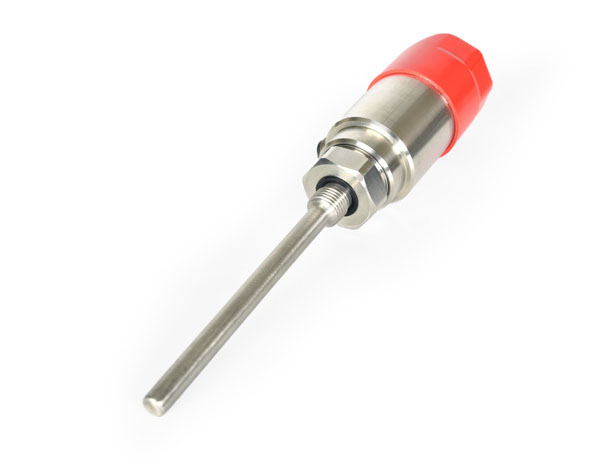

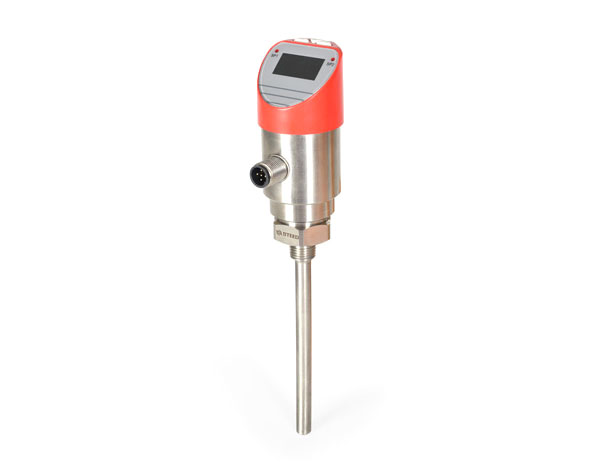

MODEL SPEC.
Model
DTSPNP
Output (mA)
4 ~ 20
Supply Voltage
12 ~ 30VDC
Ambient Temperature (°C)
-40 ~ 85
Water Resistant Level
NEMA 4X ( IP65 )
Thread Connection
G1/2", G1/4", M20*1.5
Weight ( kg )
0.3
ORDER CODES
DTSPNP 5 - 7 - 12
a b - c - d
a. Model Name :DTSPNP
b. Temperature Range (°C) :
1: -150 ~ 0
2: -100 ~ 0
3: -50 ~ 50
4: 0 ~ 50
5: 0 ~ 100
6: 0 ~ 200
7: 0 ~ 400
8: 0 ~ 500
9: others
c. Probe Lengh (mm) * :
1: 30
2: 50
3: 80
4: 100
5: 150
6: 200
7: 350
8: 500
9: 800
11: others
d. Thread Connection
12: G 1/2”
14: G 1/4”
2015: M20x1.5
* The length isn`t incloud thread connection.
SYMBOLS
WIRING INSTRUCTION

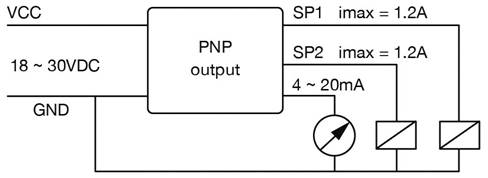

Pin Assignment : brown:VCC blue:GND black:SP1 white:SP2 gray:4~20mA

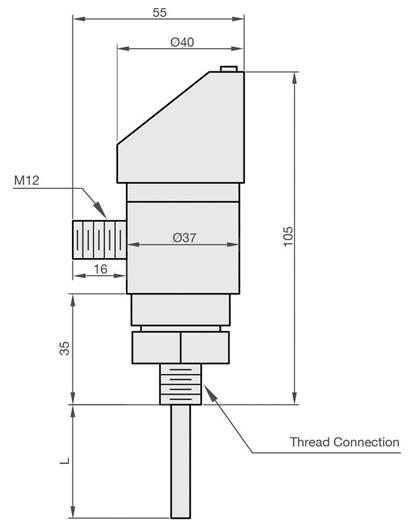

DIMENSION (UNIT : mm)
