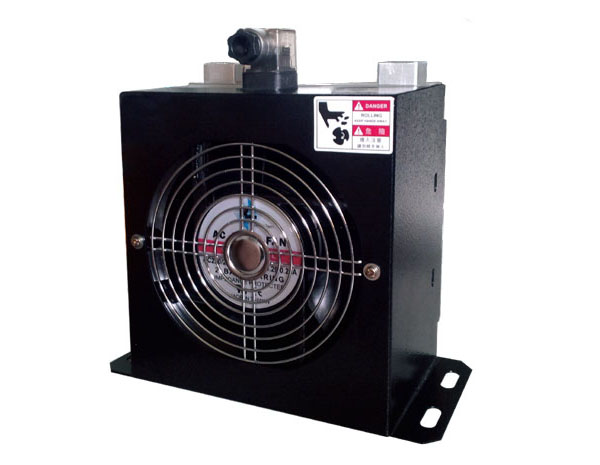

OA217H-6C

MODEL SPEC.

Model	Flow ( l/min )	Rated Voltage	Frequency ( Hz )	Rated Current (A)	Input ( w )
OA217H-6A1	1 ~ 15	1Ø110V	50/60	0.60/0.50	39.6/33.0
OA217H-6A2	1 ~ 15	1Ø220V	50/60	0.27/0.23	35.6/30.4
OA217H-6A3	1 ~ 15	1Ø380V	50/60	0.16/0.14	36.5/31.9
OA217H-6D1	1 ~ 15	DC12V	-	1.20	14.4
OA217H-6D2	1 ~ 15	DC24V	-	0.75	18.0

Model	Rated Speed ( r/min )	Air Flow ( CFM )	Noise ( dB(A) )	Cooling Capacity ( kcal/h ) ∆T = 30°C	Weight ( kg )
OA217H-6A1	2600/3100	190/235	48	1150	3.1
OA217H-6A2	2600/3100	190/235	48
OA217H-6A3	2600/3100	190/235	48
OA217H-6D1	3000	235	51
OA217H-6D2	3400	258	51

ORDER CODES

OA217H - 4 N 6 A2

a - b c d e

a. Model Name : OA217H

b. Conneciton Size :

3:3/8”

4:1/2”

c. Thread :

B:BSPP

N:NPT

T:PT

d. Fan Motor Size : 6”

e. Rated Voltage :

A1:AC110V

A2:AC220V

A3:AC380V

D1:DC12V

D2:DC24V

SYMBOLS

PERFORMANCE CURVES

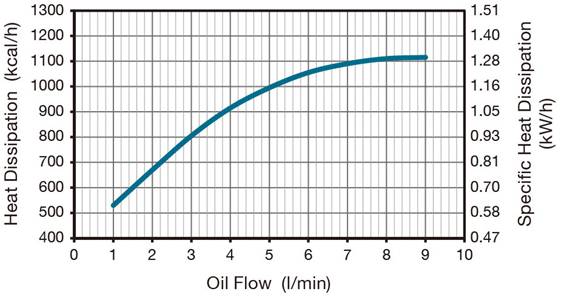

Cooling Capacity

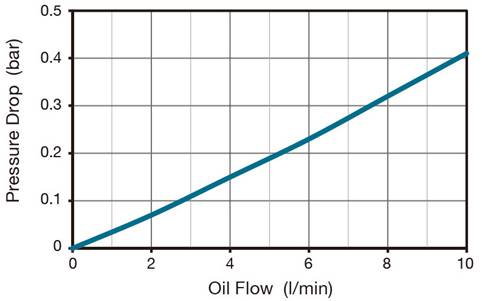

Pressure Differential ∆p

* On the condition of oil viscosity at 32mm²/s.

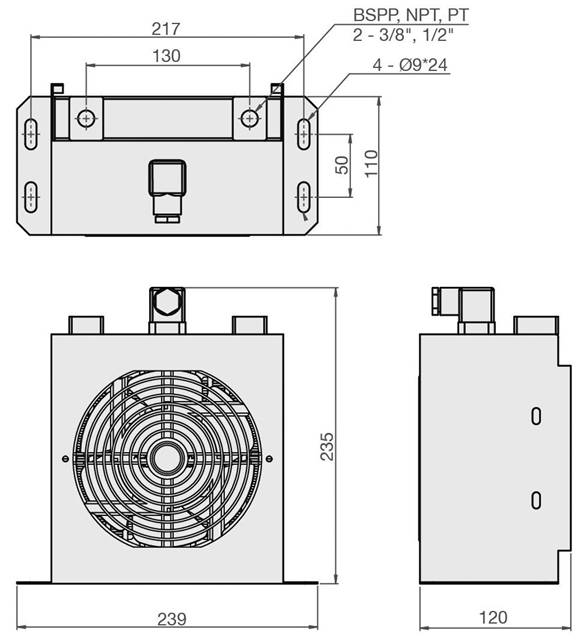

DIMENSION (UNIT : mm)
