MODEL SPEC.
Model
Connection Thread
and Size
Flow
( l/min )
Max. Pressure
( kgf/cm2 )
Weight
( kg )
CR217C-3N
3/8"
1~15
15
1.8
ORDER CODES
CR217C - 3 N
a - b c
a. Model Name : CR217C
b. Conneciton Size : 3:3/8”
c. Thread :
B:BSPP
N:NPT
T:PT
SYMBOLS

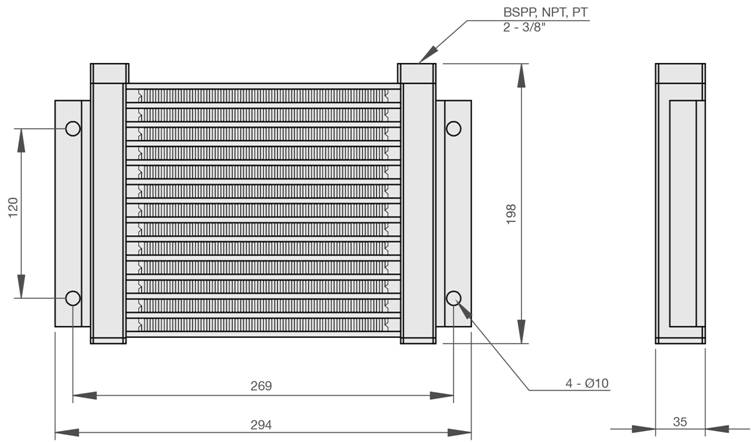

DIMENSION (UNIT : mm)
