MODEL SPEC.
Model
React to Pressure Differential ( bar )
Weight
( kg )
D2-05-35
3.5
0.12
ORDER CODES
D2 - 05 - 35
a - b - c
a. Model Name : D2:visual and electrical type
b. Mounting Type :
05:BSP 1/2”
c. React to Pressure Differential :
35:3.5bar
SYMBOLS

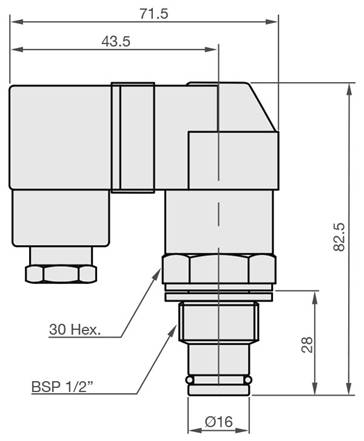

DIMENSION (UNIT : mm)
