MODEL SPEC.
Model
Connection Thread
and Size
Flow
( l/min )
Max. Pressure
( kgf/cm2 )
Rated
Voltage
CR35C-4N8D1
1/2"
1 ~ 15
15
DC12V
CR35C-4N8D2
DC24V
Rated Current
(A)
Input
( w )
Fan Motor Size
( inch )
Weight
( kg )
4.12
50.0
8"
3.2
2.08
ORDER CODES
CR35C - 4 N 8 D2
a - b c d e
a. Model Name : CR35C
b. Conneciton Size : 4:1/2”
c. Thread :
B:BSPP
N:NPT
T:PT
d. Fan Motor Size : 8”
e. Rated Voltage :
D1:DC12V
D2:DC24V
SYMBOLS
PERFORMANCE CURVES

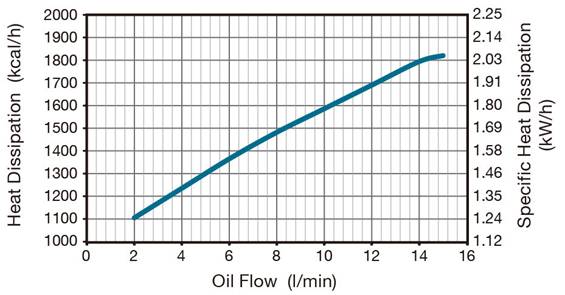

Cooling Capacity

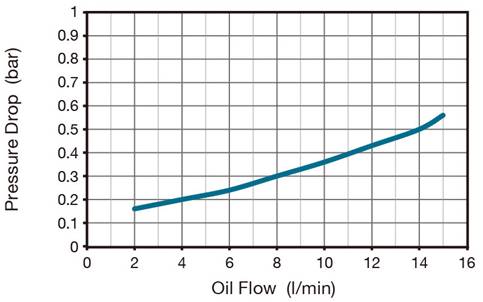

Pressure Differential ∆p
* On the condition of oil viscosity at 32mm2/s.

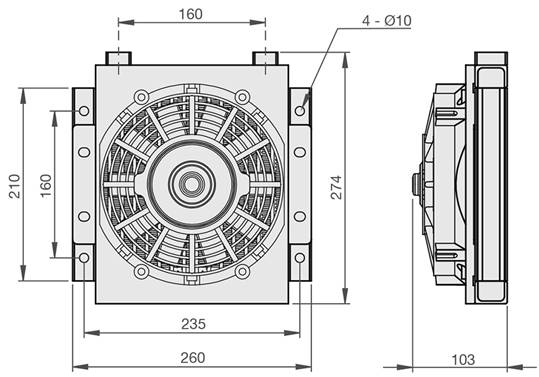

DIMENSION (UNIT : mm)
