MODEL SPEC.
Model
Accurate
Displacement
Capacity
( cc/rev )
Operating Pressure
( kgf/cm2 )
Max. Pressure
Speed
( r.p.m. )
Ports Size
( PT )
Weight
( kg )
Rate
Max.
Min.
Inlet
Outlet
HGP-05A-03
0.35
210
250
1800
3500
800
1/8"
0.40
HGP-05A-05
0.56
0.42
HGP-05A-08
0.85
1/4"
0.43
HGP-05A-11
1.13
0.44
ORDER CODES
HGP-05A - F 08 R - X
a - b c d - e
a. Model Name : HGP-05A
b. Mounting :
F:flange type
L:foot type
c. Delivery Capacity : 03, 05, 08, 11
d. Rotation Direction :
R:clockwise
L:counter-clockwise
e. Shaft Type : X:straight shaft
SYMBOLS

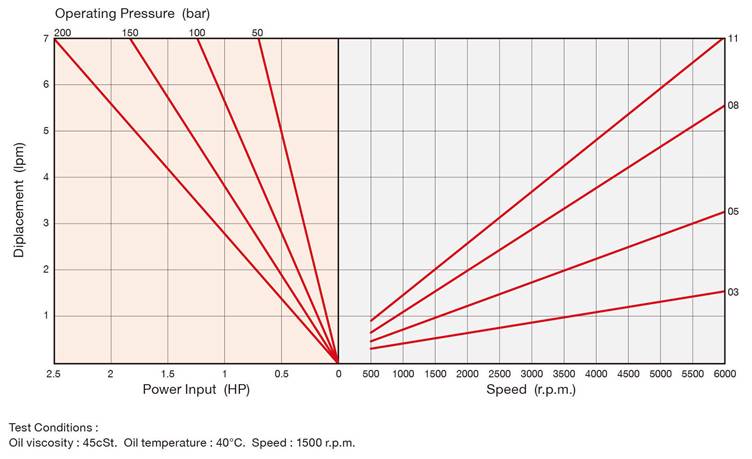

PERFORMANCE CURVE

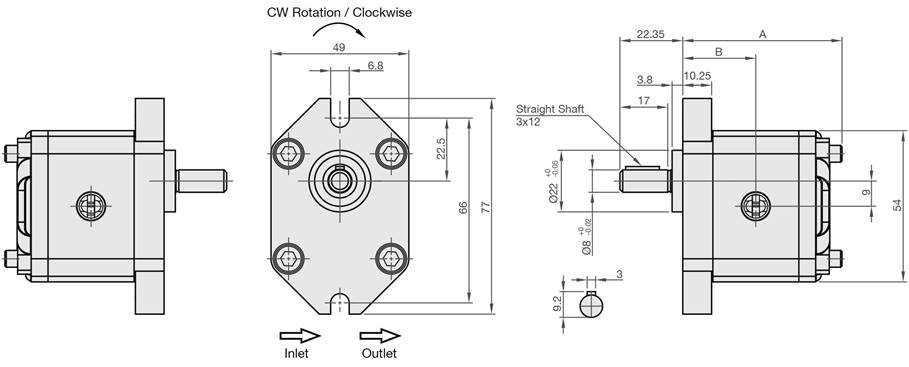

DIMENSION (UNIT : mm)
A
B
52
25
54
26
56
27
58
28

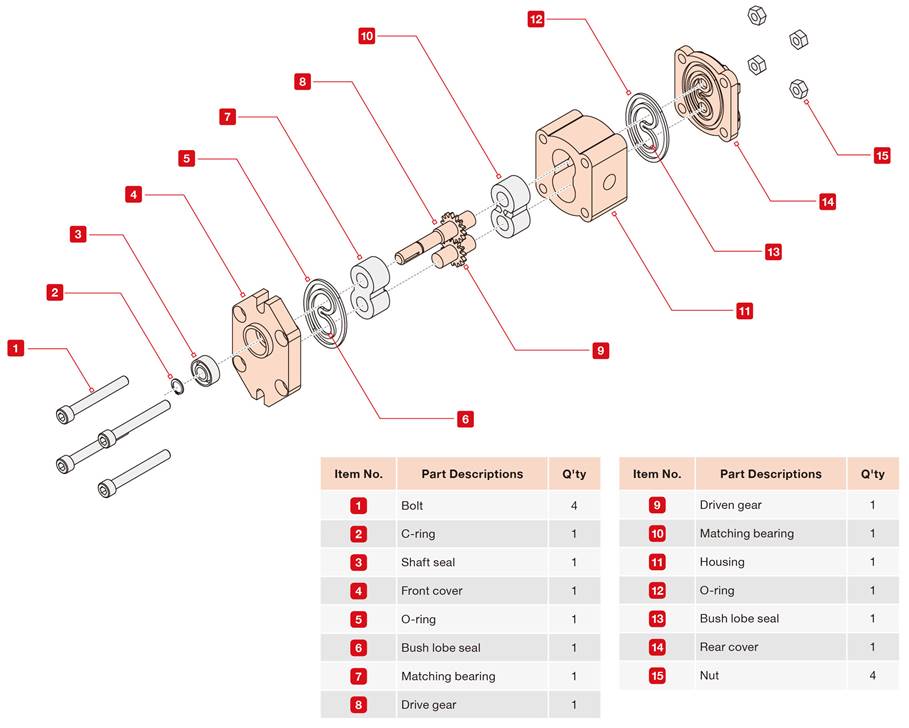

DECOMPOSITION CHARTS
