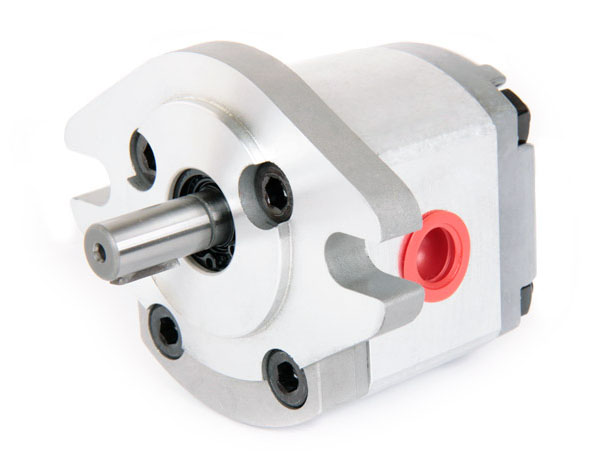

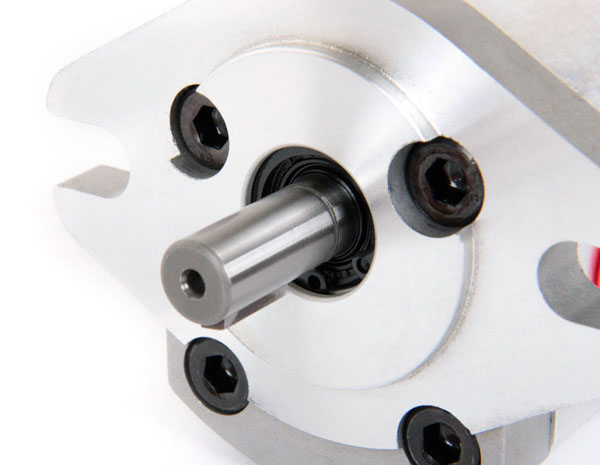

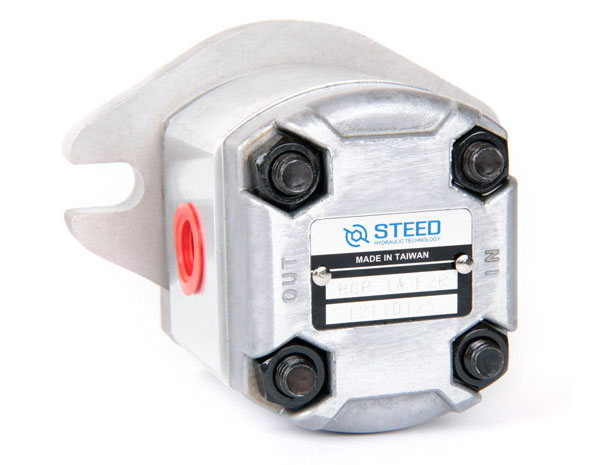

HGP-1A

MODEL SPEC.

Model	Accurate Displacement Capacity ( cc/rev )	Operating Pressure ( kgf/cm² )	Max. Pressure ( kgf/cm² )	Speed ( r.p.m. )			Weight ( kg )
Model		Operating Pressure ( kgf/cm² )	Max. Pressure ( kgf/cm² )	Rate	Max.	Min.	Weight ( kg )
HGP-1A-05	0.5	210	250	1800	4500	1000	1.0
HGP-1A-08	0.8	210	250	1800	4500	1000	1.0
HGP-1A-1	1	210	250	1800	4500	1000	1.0
HGP-1A-2	2	210	250	1800	4500	600	1.05
HGP-1A-26	2.6	210	250	1800	4500	600	1.15
HGP-1A-3	3	210	250	1800	4500	600	1.15
HGP-1A-4	4	210	250	1800	4000	600	1.18
HGP-1A-5	5	210	250	1800	3200	600	1.2
HGP-1A-6	6	210	250	1800	3200	600	1.3
HGP-1A-8	7.8	170	210	1800	3200	600	1.4

* HGP-1A-05 and HGP-1A-26 do not belong to regular products. Customized service can be provided.

ORDER CODES

HGP-1A - F 08 R - X1 - 4BDA - N1

a - b c d - e - f - g

a. Model Name : HGP-1A

b. Mounting :

F:flange type

L:foot type

c. Delivery Capacity : 05, 08, 1, 2, 26, 3, 4, 5, 6, 8

d. Rotation Direction :

R:clockwise

L:counter-clockwise

M:hydraulic motor*

e. Shaft Type :

X:straight shaft

Y:spline shaft

Z:taper shaft

f. Flange Mounting Type :

2B:SAE 2-bolt

4BDA:DIN 4-bolt ( type A )

4BDB:DIN 4-bolt ( type B )

4BE:European 4-bolt

g. Inlet and Outlet :

F:flange type (F1~F2)

G:PF, G, BSP (G1~G2)

P:PT (P1~P2)

N:NPT (N1~N2)

U:UNF (U1~U2)

* Please contact local distributors to obtain the specification of hydrulic motors.

SYMBOLS

HGP single_symbol

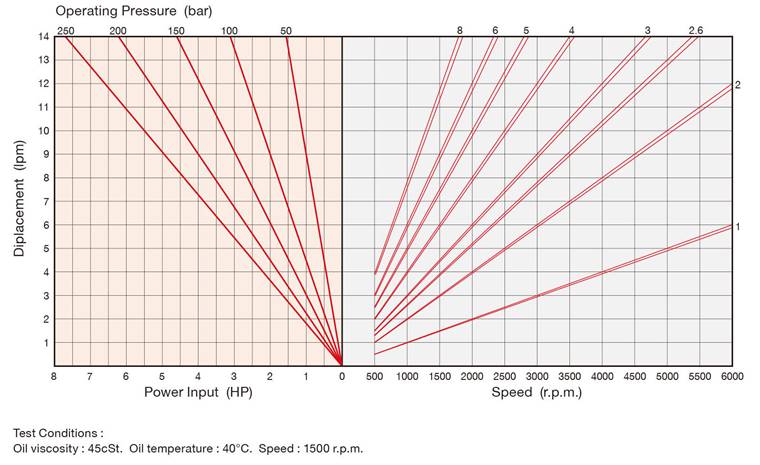

PERFORMANCE CURVE

DIMENSION (UNIT : mm)

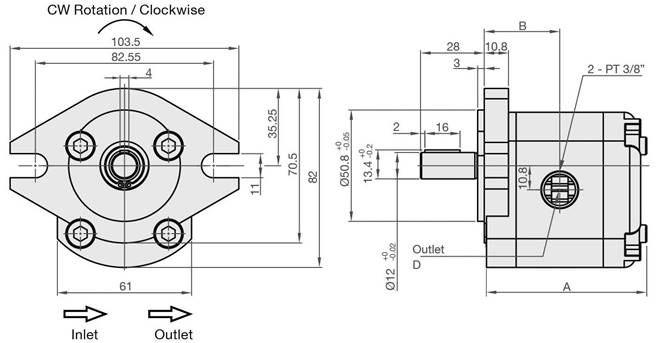

HGP-1A-2B

HGP-1A-2B_dim

Model	A	B	C Inlet	D Outlet
HGP-1A-08	67.5	32.5	PT 3/8"	PT 3/8"
HGP-1A-1	69.5	33.5	PT 3/8"	PT 3/8"
HGP-1A-2	72	34.8	PT 3/8"	PT 3/8"
HGP-1A-3	77.5	37.5	PT 3/8"	PT 3/8"
HGP-1A-4	79.5	38.5	PT 3/8"	PT 3/8"
HGP-1A-5	83.5	40.5	PT 3/8"	PT 3/8"
HGP-1A-6	87.5	42.5	PT 3/8"	PT 3/8"
HGP-1A-8	93.5	45.5	PT 1/2"	PT 3/8"

* If you want to order HGP-1A-05 or HGP-1A-26, please email us to get further information.

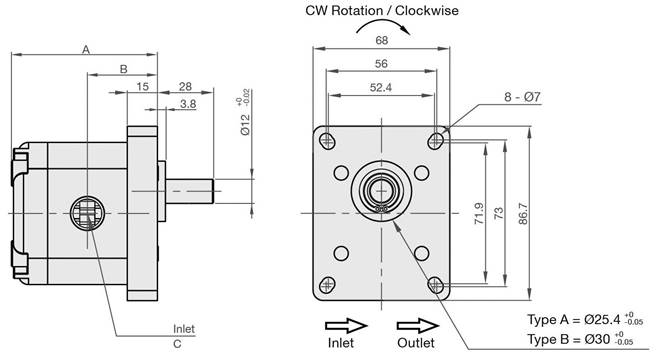

HGP-1A-4BD

HGP-1A-4BD_2019_dim

Model	A	B	C Inlet	D Outlet
HGP-1A-08	67.5	32.5	PT 3/8"	PT 3/8"
HGP-1A-1	69.5	33.5	PT 3/8"	PT 3/8"
HGP-1A-2	72	34.8	PT 3/8"	PT 3/8"
HGP-1A-3	77.5	37.5	PT 3/8"	PT 3/8"
HGP-1A-4	79.5	38.5	PT 3/8"	PT 3/8"
HGP-1A-5	82.5	40.5	PT 3/8"	PT 3/8"
HGP-1A-6	87.5	42.5	PT 3/8"	PT 3/8"
HGP-1A-8	93.5	45.5	PT 1/2"	PT 3/8"

* If you want to order HGP-1A-05 or HGP-1A-26, please email us to get further information.

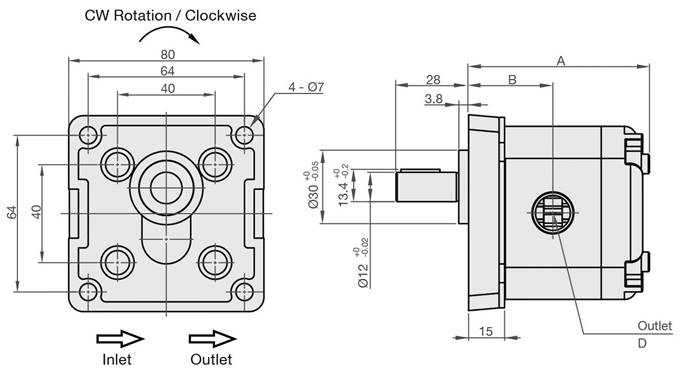

HGP-1A-4BE

HGP-1A-4BE_dim

Model	A	B	C Inlet	D Outlet
HGP-1A-08	75.5	32.5	PT 3/8"	PT 3/8"
HGP-1A-1	77.5	33.5	PT 3/8"	PT 3/8"
HGP-1A-2	80.1	34.8	PT 3/8"	PT 3/8"
HGP-1A-3	85.5	37.5	PT 3/8"	PT 3/8"
HGP-1A-4	87.5	38.5	PT 3/8"	PT 3/8"
HGP-1A-5	91.5	40.5	PT 3/8"	PT 3/8"
HGP-1A-6	95.5	42.5	PT 3/8"	PT 3/8"
HGP-1A-8	101.5	45.5	PT 1/2"	PT 3/8"

* If you want to order HGP-1A-05 or HGP-1A-26, please email us to get further information.

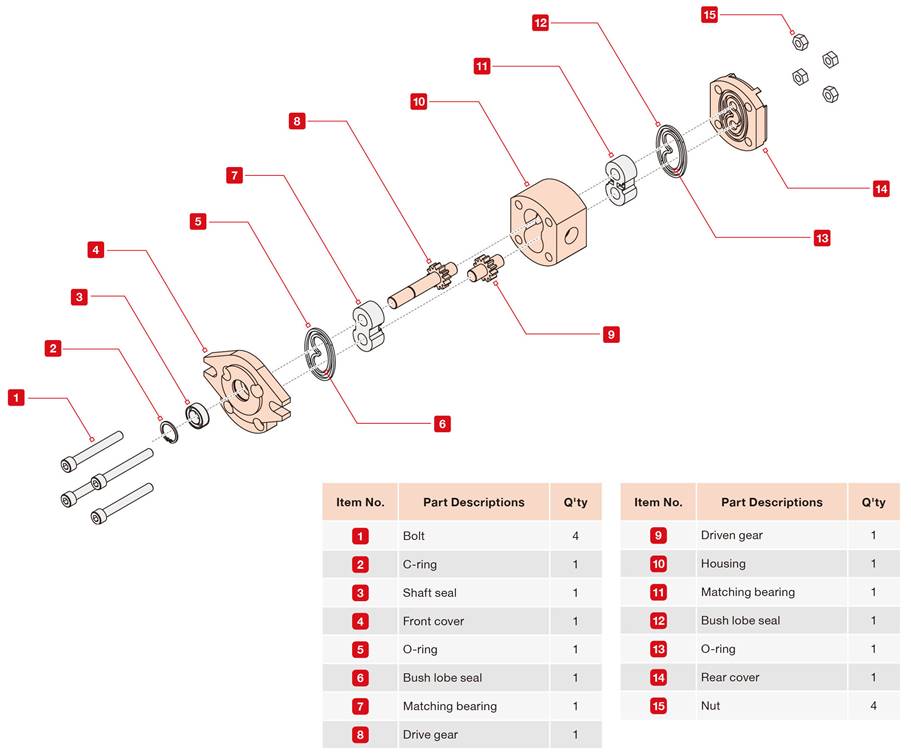

DECOMPOSITION CHARTS

HGP-1A_decom

ADDITIONAL DIMENSION (UNIT : mm)

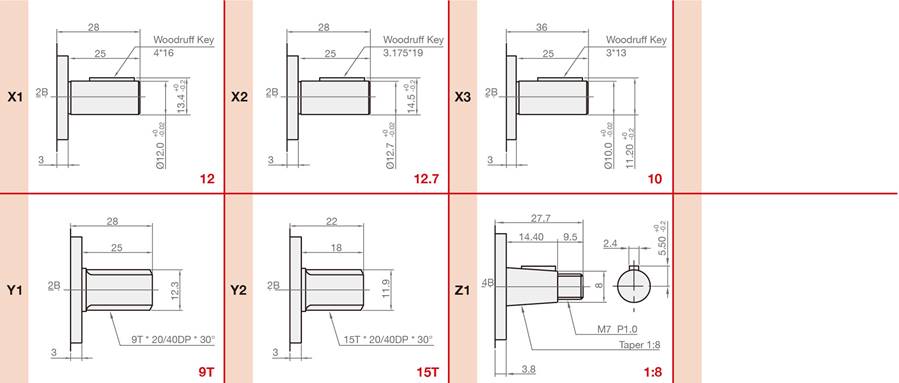

Dimension of Shaft

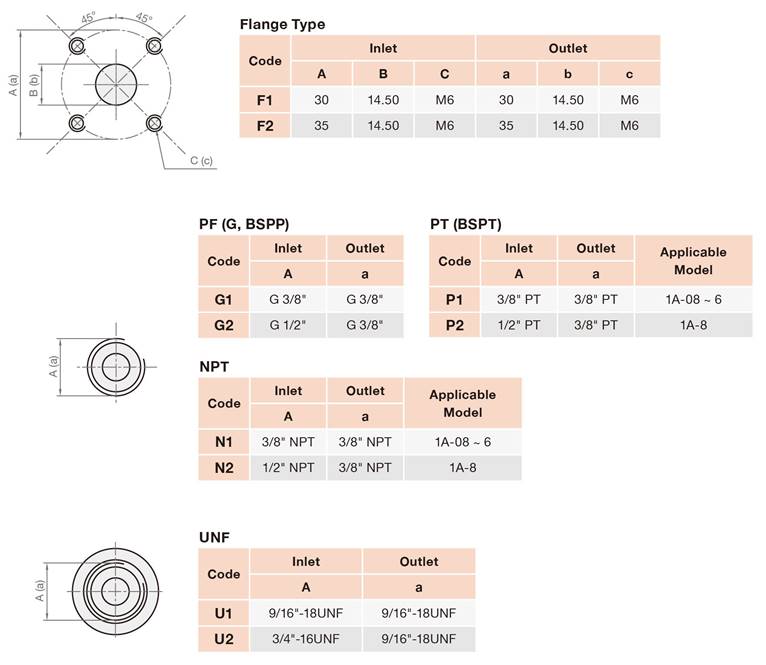

Inlet and Outlet Size

HGP-1A_inlet
