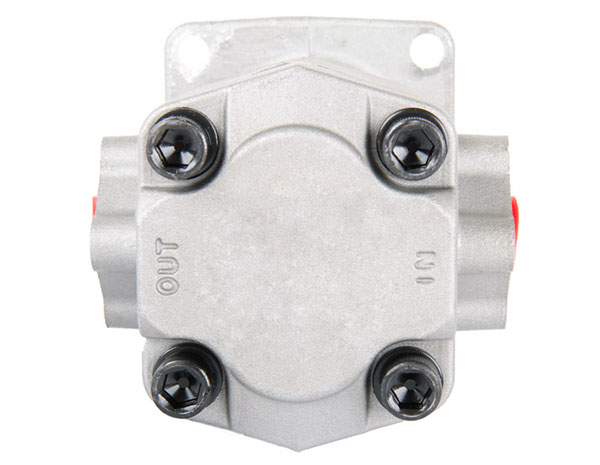

HGP-2AY
- F 12 R - W1 - 4BJ - N2
a
- b c d - e
- f - g
a.
Model Name :
HGP-2AY:standard
HGP-2A:old standard
b. Mounting
:
F:flange type
L:foot type

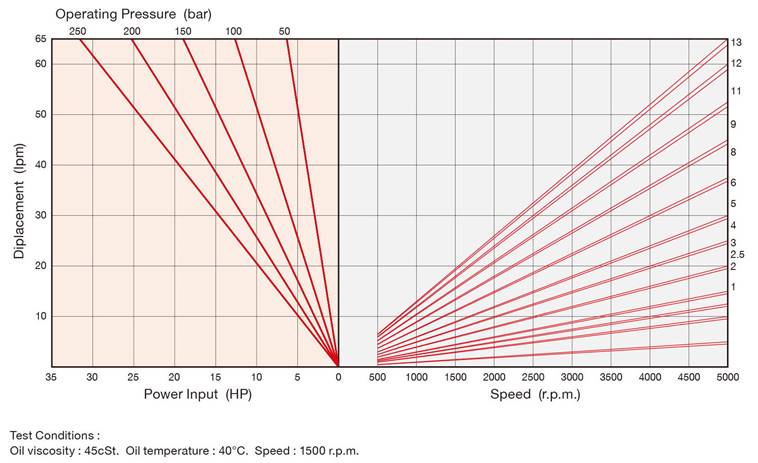

c. Delivery Capacity : 1, 2, 25, 3, 4, 5, 6, 8, 9, 11, 12, 13
d. Rotation Direction :
R:clockwise
L:counter-clockwise

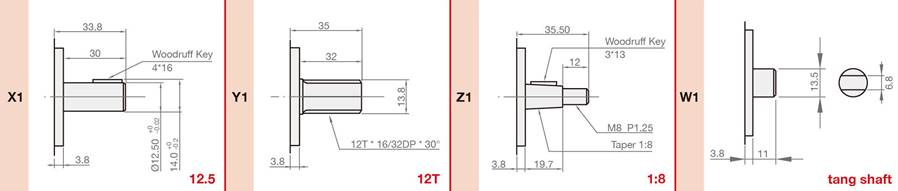

e. Shaft
Type :
W:tang shaft
X:straight shaft
Y:spline shaft
Z:taper shaft
f. Flange
Mounting Type :
4BJ:JIS 4-bolt

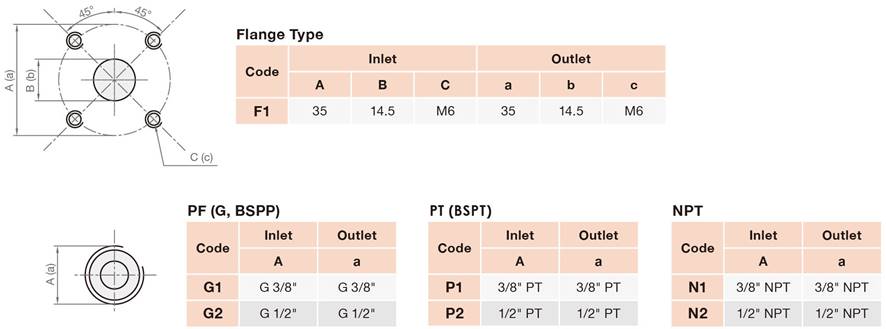

g. Inlet
and Outlet :
F:flange type (F1)
G:PF, G, BSP (G1~G2)
P:PT (P1~P2)
N:NPT (N1~N2)
|
