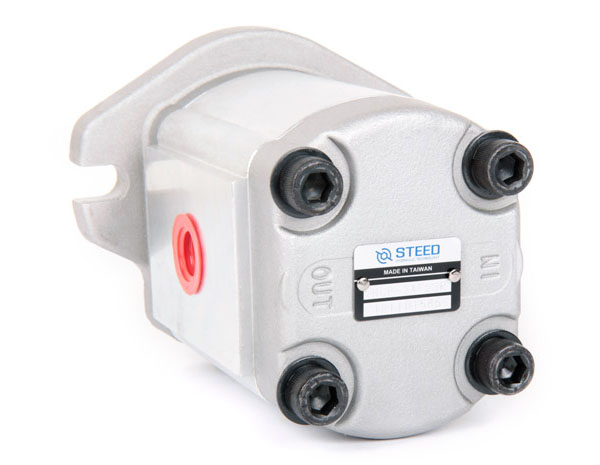

HGP-3A

MODEL SPEC.

Model	Accurate Displacement Capacity ( cc/rev )	Operating Pressure ( kgf/cm² )	Max. Pressure ( kgf/cm² )	Speed ( r.p.m. )			Weight ( kg )
Model		Operating Pressure ( kgf/cm² )	Max. Pressure ( kgf/cm² )	Rate	Max.	Min.	Weight ( kg )
HGP-3A-4	4	210	250	1800	4000	700	2.29
HGP-3A-6	6	210	250	1800	4000	700	2.37
HGP-3A-8	8.4	210	250	1800	3500	700	2.45
HGP-3A-11	11	210	250	1800	3000	600	2.60
HGP-3A-13	13	210	250	1800	3000	600	2.70
HGP-3A-14	14.3	210	250	1800	3000	500	2.76
HGP-3A-17	16.5	210	250	1800	3000	500	2.87
HGP-3A-19	19.2	210	250	1800	3000	500	2.99
HGP-3A-23	23	210	250	1800	3000	500	3.19
HGP-3A-25	25	175	210	1800	2800	500	3.24
HGP-3A-28	28	175	210	1800	2500	500	3.35
HGP-3A-30	30	175	210	1800	2500	500	3.45
HGP-3A-33	33	140	175	1200	2500	500	3.60
HGP-3A-35	35	125	140	1200	2500	500	3.71

ORDER CODES

HGP-3A - F 13 R - X1 - 2B - F1

a - b c d - e - f - g

a. Model Name : HGP-3A

b. Mounting :

F:flange type

L:foot type

c. Delivery Capacity : 4, 6, 8, 11, 13, 14, 17, 19, 23, 25, 28, 30, 33, 35

d. Rotation Direction :

R:clockwise

L:counter-clockwise

M:hydraulic motor*

e. Shaft Type :

X:straight shaft

Y:spline shaft

Z:taper shaft

f. Flange Mounting Type :

2B:SAE 2-bolt

4BD:DIN 4-bolt

4BE:European 4-bolt

g. Inlet and Outlet :

F:flange type (F1~F6)

G:PF, G, BSP (G1~G2)

P:PT (P1~P2)

N:NPT (N1~N2)

U:UNF (U1~U2)

* Please contact local distributors to obtain the specification of hydrulic motors.

SYMBOLS

HGP single_symbol

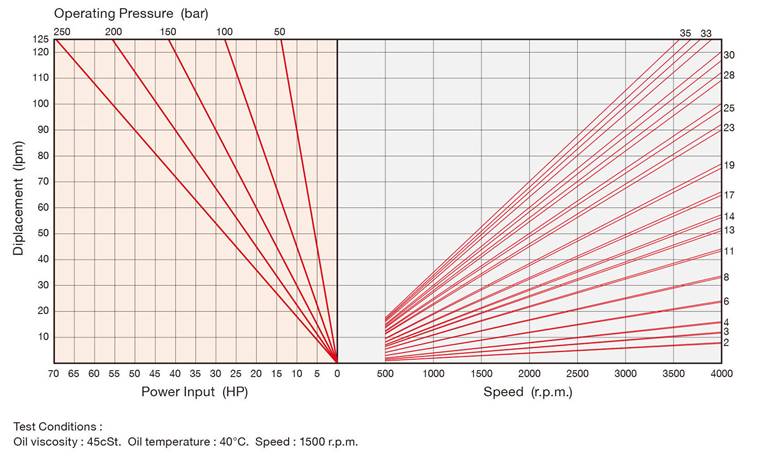

PERFORMANCE CURVE

DIMENSION (UNIT : mm)

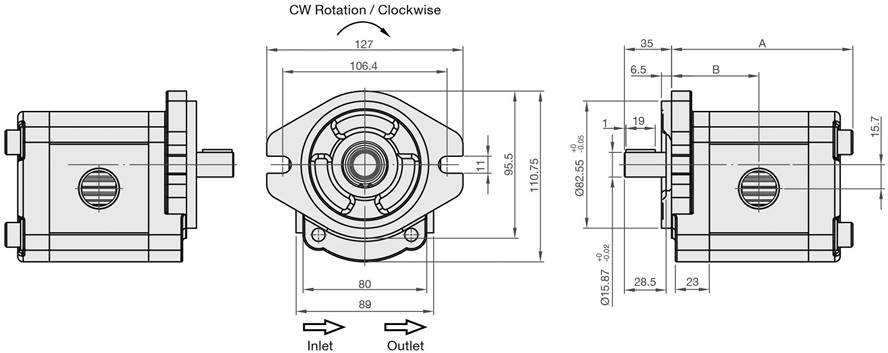

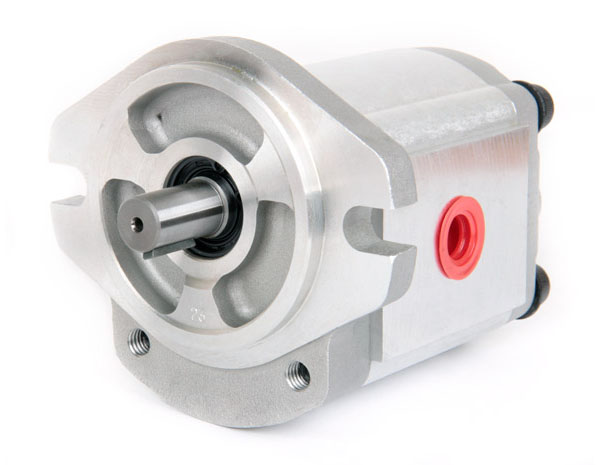

HGP-3A-F-X-2B

HGP-3A-F-X-2B_dim

Model	A	B	Model	A	B
HGP-3A-4-2B	101	48.5	HGP-3A-19-2B	127	61
HGP-3A-6-2B	105	50	HGP-3A-23-2B	134	65
HGP-3A-8-2B	109	51.5	HGP-3A-25-2B	137	66
HGP-3A-11-2B	113	54	HGP-3A-28-2B	141	68
HGP-3A-13-2B	117	56	HGP-3A-30-2B	145	70
HGP-3A-14-2B	119	57	HGP-3A-33-2B	150	73
HGP-3A-17-2B	123	59	HGP-3A-35-2B	154	75

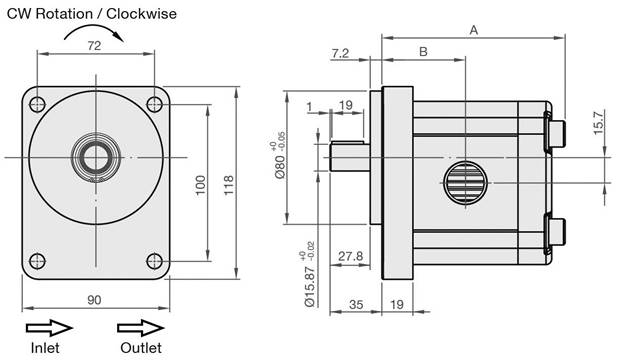

HGP-3A-F-X-4BD

HGP-3A-F-X-4BD_dim

Model	A	B	Model	A	B
HGP-3A-4-4BD	101	43.5	HGP-3A-19-4BD	127	56
HGP-3A-6-4BD	105	45	HGP-3A-23-4BD	134	60
HGP-3A-8-4BD	109	46.5	HGP-3A-25-4BD	137	61
HGP-3A-11-4BD	113	49	HGP-3A-28-4BD	141	63
HGP-3A-13-4BD	117	51	HGP-3A-30-4BD	145	65
HGP-3A-14-4BD	119	52	HGP-3A-33-4BD	150	68
HGP-3A-17-4BD	123	54	HGP-3A-35-4BD	154	70

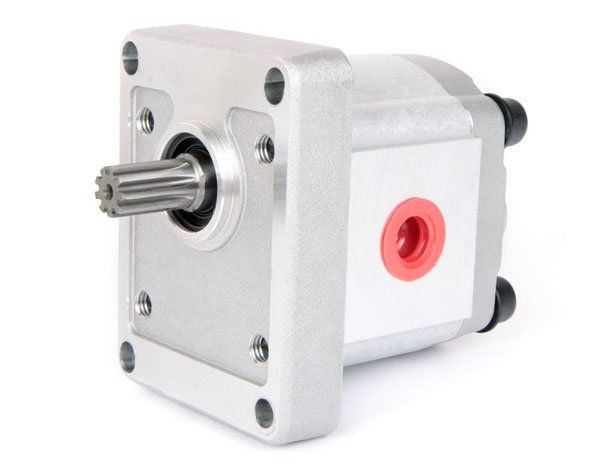

HGP-3A-F-X-4BE

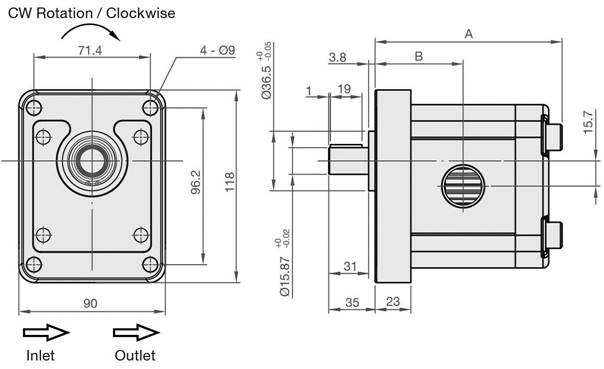

HGP-3A-F-X-4BE_dim

Model	A	B	Model	A	B
HGP-3A-4-4BE	101	46.5	HGP-3A-19-4BE	127	59
HGP-3A-6-4BE	105	48	HGP-3A-23-4BE	134	63
HGP-3A-8-4BE	109	49.5	HGP-3A-25-4BE	137	64
HGP-3A-11-4BE	113	52	HGP-3A-28-4BE	141	66
HGP-3A-13-4BE	117	54	HGP-3A-30-4BE	145	68
HGP-3A-14-4BE	119	55	HGP-3A-33-4BE	150	71
HGP-3A-17-4BE	123	57	HGP-3A-35-4BE	154	73

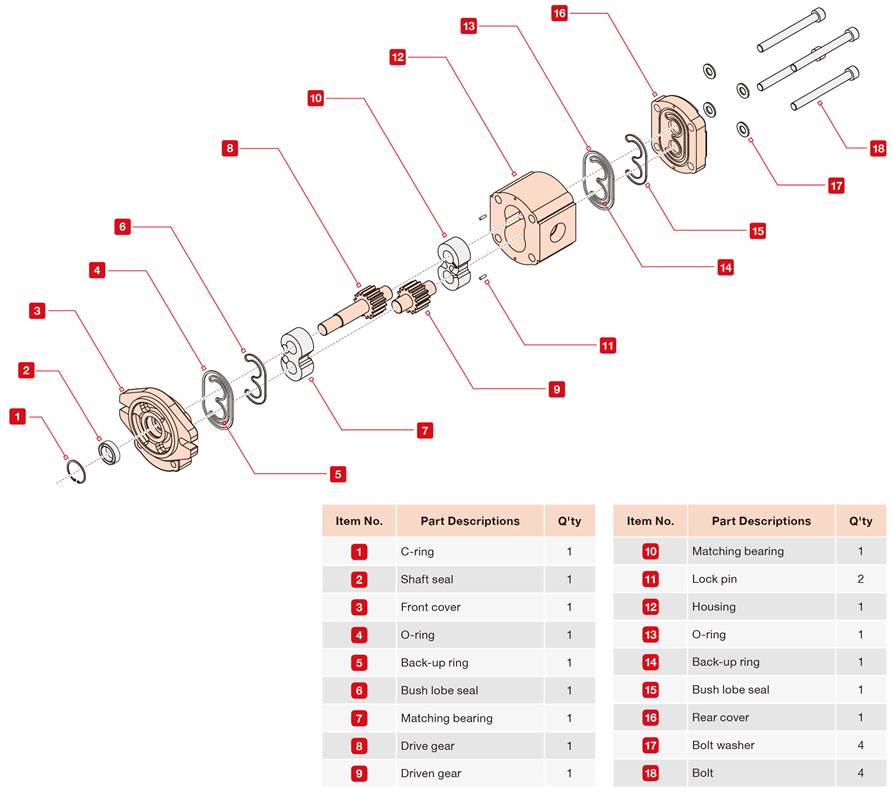

DECOMPOSITION CHARTS

HGP-3A_decom

ADDITIONAL DIMENSION (UNIT : mm)

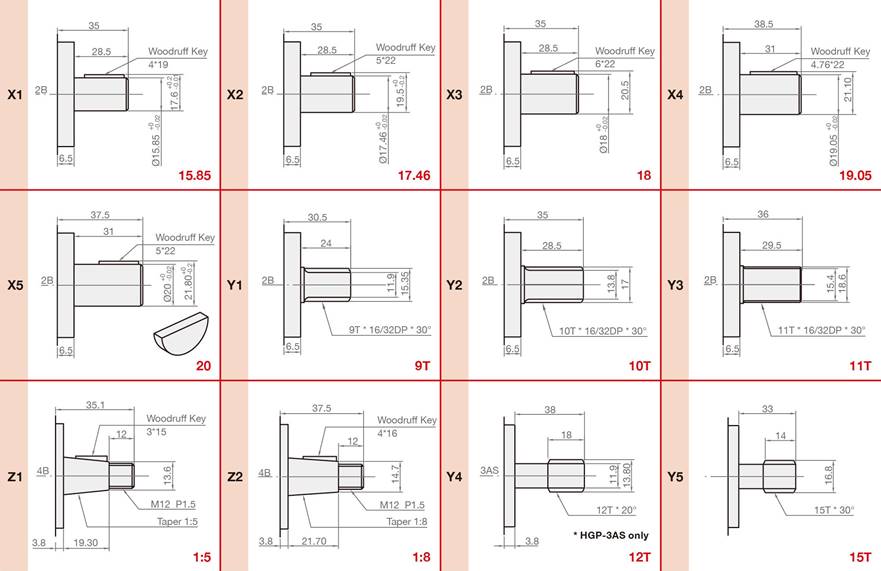

Dimension of Shaft

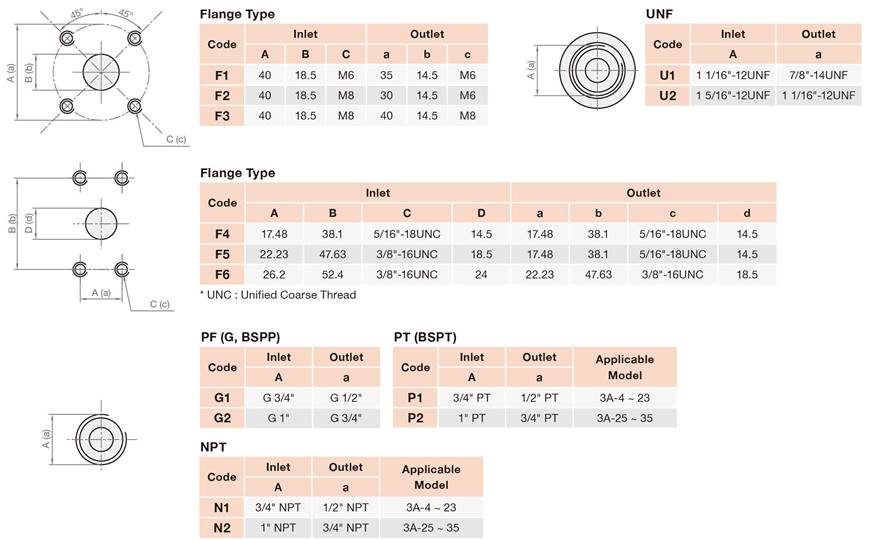

Inlet and Outlet Size

HGP-3A_inlet
