HGP-3A2D - F 13
R - Y4 - N1
a - b c d
- e - f
a. Model
Name : HGP-3A2D

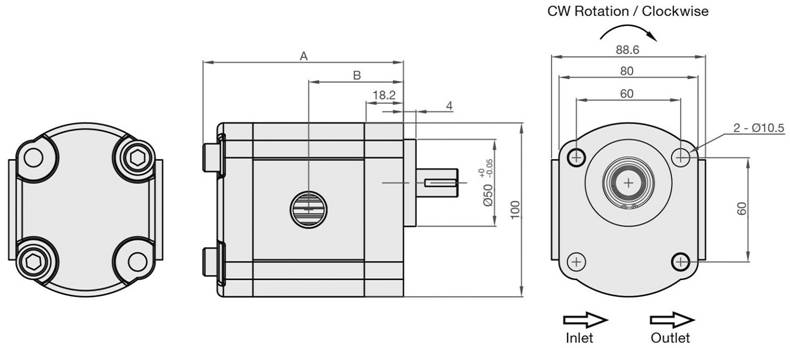

b. Mounting :
F:flange type
L:foot type
c. Delivery
Capacity : 4, 6, 8, 11, 13, 14, 17, 19, 23, 25, 28, 30, 33, 35
d. Rotation
Direction :
R:clockwise
L:counter-clockwise

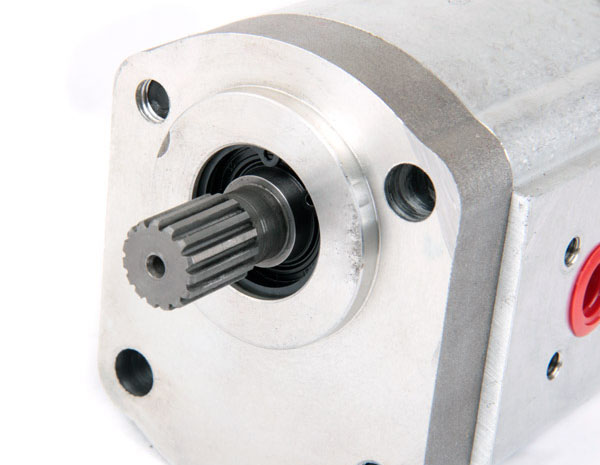

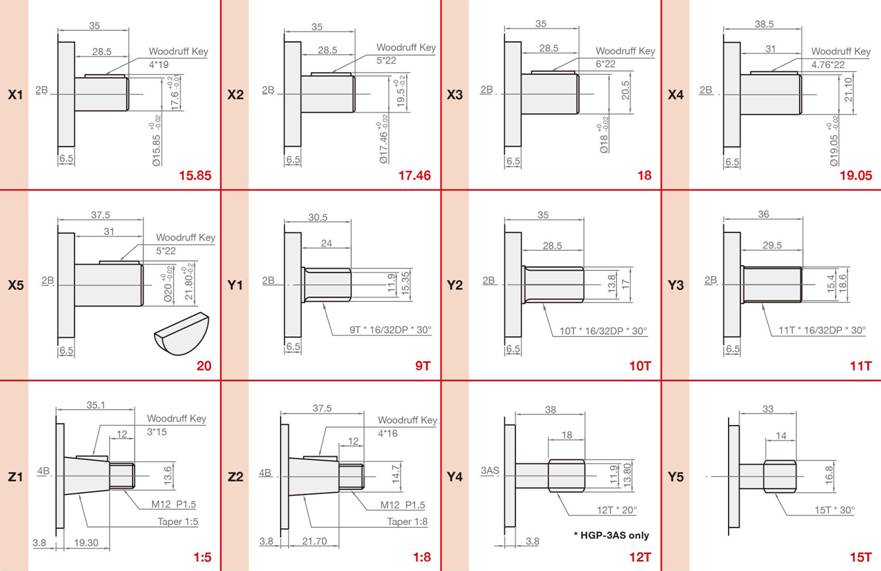

e. Shaft Type :
X:straight shaft
Y:spline shaft
Z:taper shaft

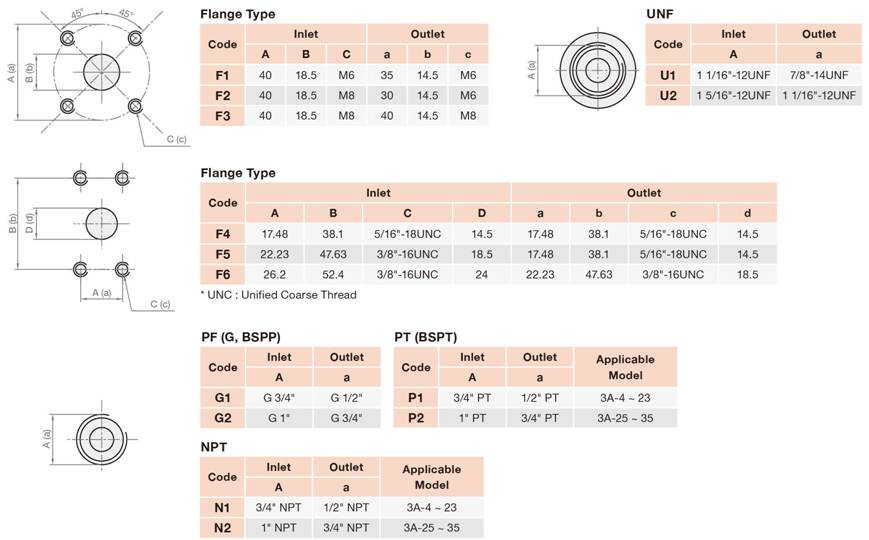

f.
Inlet and Outlet :
F:flange type (F1~F6)
G:PF, G, BSP (G1~G2)
P:PT (P1~P2)
N:NPT (N1~N2)
U:UNF
(U1~U2)
|
