HGP-3AS - F 19 R
- X1 - 4BJ - N1
a - b c d -
e - f - g
a. Model
Name : HGP-3AS
b. Mounting :
F:flange type
L:foot type
c. Delivery
Capacity : 4, 6, 8, 11, 13, 14, 17, 19
d. Rotation
Direction :
R:clockwise
L:counter-clockwise

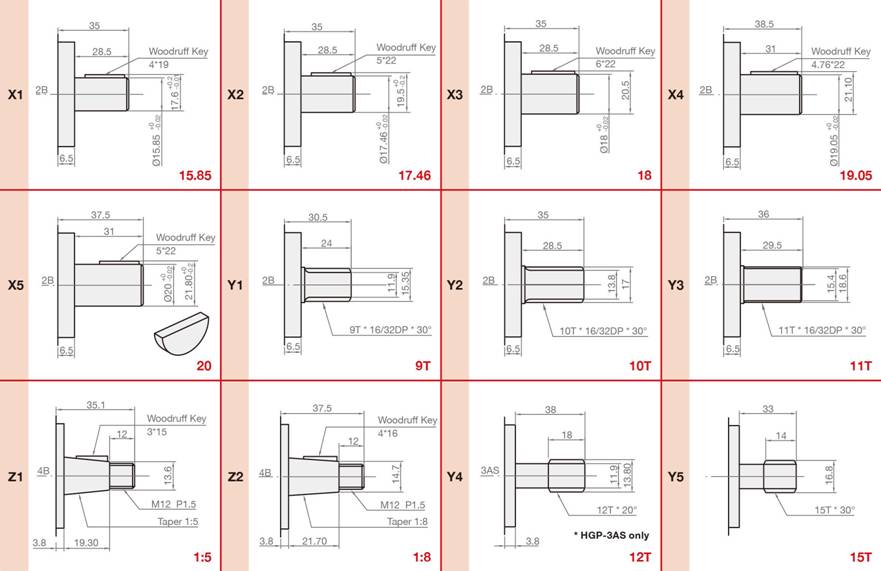

e. Shaft Type :
X:straight shaft

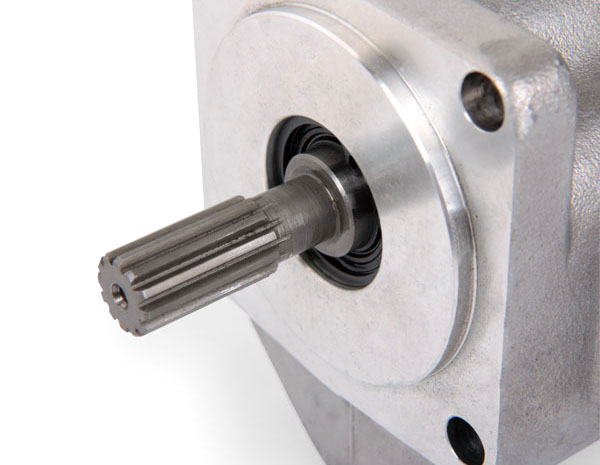

Y:spline shaft
Z:taper shaft
f.
Flange Mounting Type :
4BJ:JIS 4-bolt

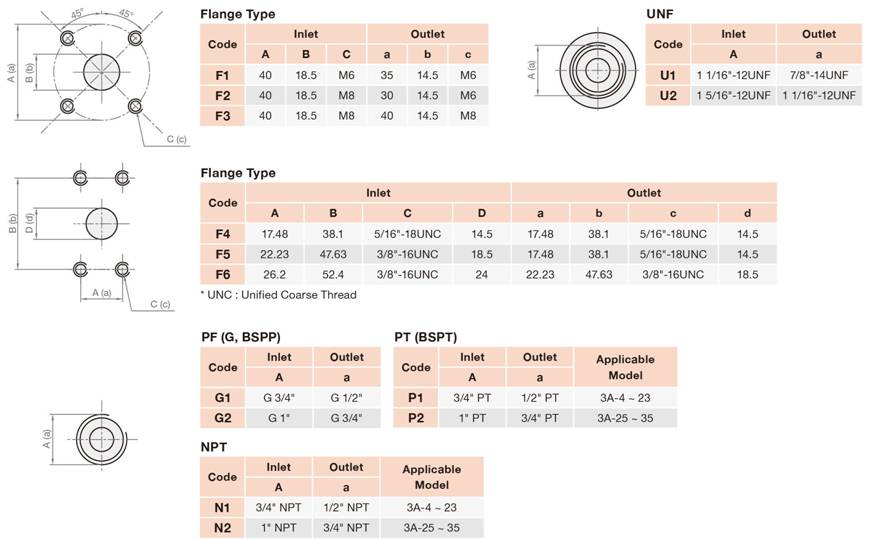

g. Inlet and
Outlet :
F:flange type (F1~F6)
G:PF, G, BSP (G1~G2)
P:PT (P1~P2)
N:NPT
(N1~N2)
U:UNF (U1~U2)
|
