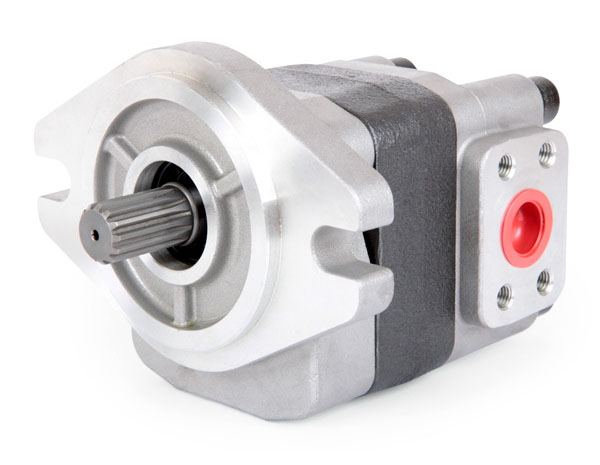

HGP-4A

MODEL SPEC.

Model	Accurate Displacement Capacity ( cc/rev )	Operating Pressure ( kgf/cm² )	Max. Pressure ( kgf/cm² )	Speed ( r.p.m. )		Weight ( kg )
Model		Operating Pressure ( kgf/cm² )	Max. Pressure ( kgf/cm² )	Loaded	Unloaded	Weight ( kg )
HGP-4A-20	20	250	300	600	3000	4.1
HGP-4A-23	22.5	250	300	600	3000	4.6
HGP-4A-25	25	250	300	600	3000	5.1
HGP-4A-28	28	250	300	600	3000	5.7
HGP-4A-32	31.5	250	300	600	3000	6.4
HGP-4A-36	35.5	210	250	600	3000	7.1
HGP-4A-40	40	210	250	600	3000	8.0
HGP-4A-45	45	210	250	600	2600	8.8
HGP-4A-50	50	175	210	600	2500	9.7
HGP-4A-55	55	175	210	600	2400	10.7
HGP-4A-60	60	140	175	600	2000	11.8

ORDER CODES

HGP-4A - F 23 R - Y1 - 2BB - N1

a - b c d - e - f - g

a. Model Name : HGP-4A

b. Mounting :

F:flange type

L:foot type

c. Delivery Capacity : 20, 23, 25, 28, 32, 36, 40, 45, 50, 56, 60

d. Rotation Direction :

R:clockwise

L:counter-clockwise

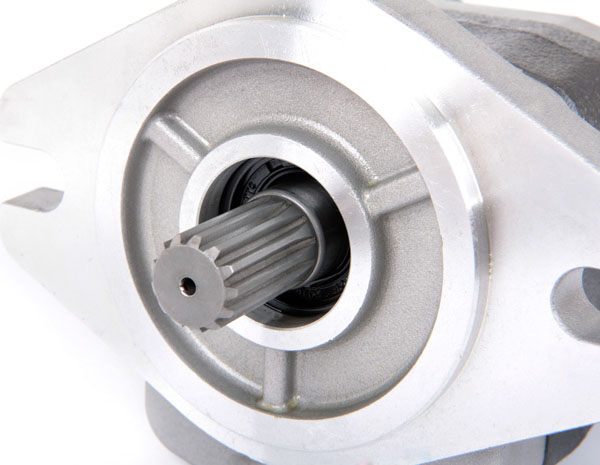

e. Shaft Type :

X:straight shaf

Y:spline shaft

Z:taper shaft

f. Flange Mounting Type :

2BA:SAE 2-bolt ( type A )

2BB:SAE 2-bolt ( type B )

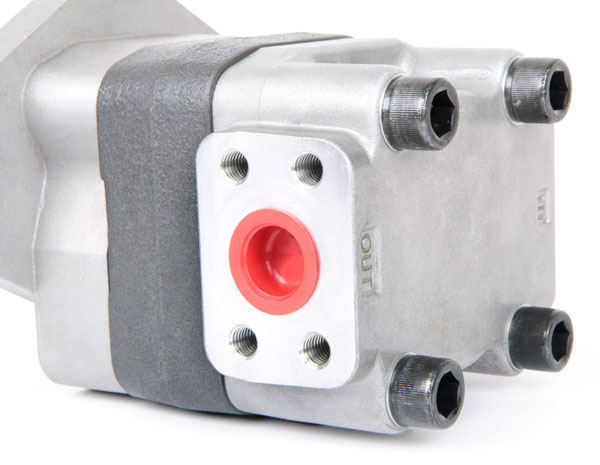

g. Inlet and Outlet :

F:flange type (F1~F2)

G:PF, G, BSP (G1~G2)

P:PT (P1~P2)

N:NPT (N1~N2)

SYMBOLS

HGP single_symbol

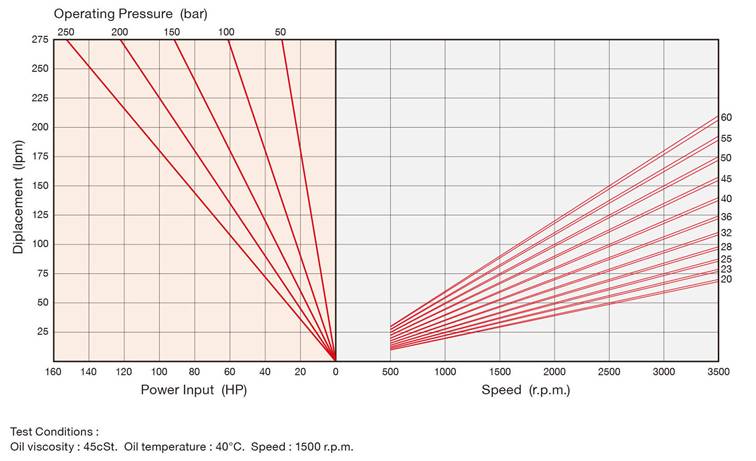

PERFORMANCE CURVE

DIMENSION (UNIT : mm)

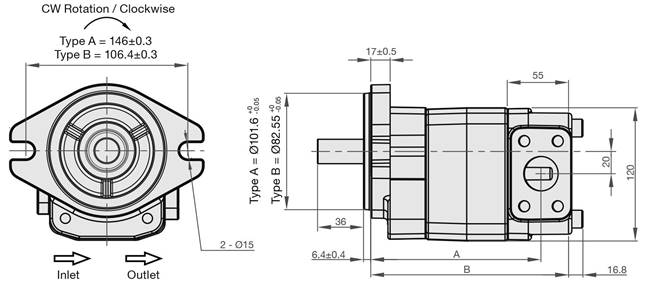

HGP-4A-2B

HGP-4A_dim

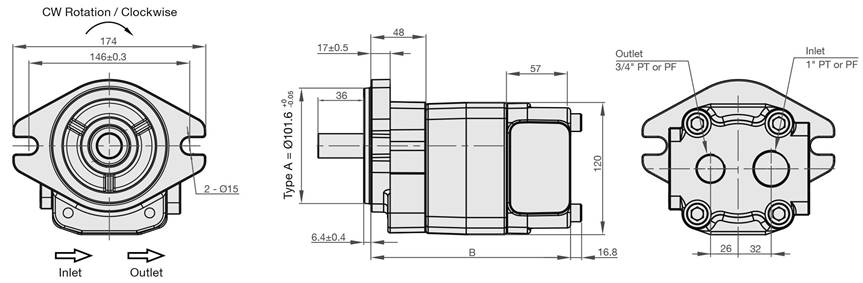

HGP-4A (rear ports, customized)

HGP-4A-cus_dim

* If you need customized services, please contact the local distributors to obtain the further information.

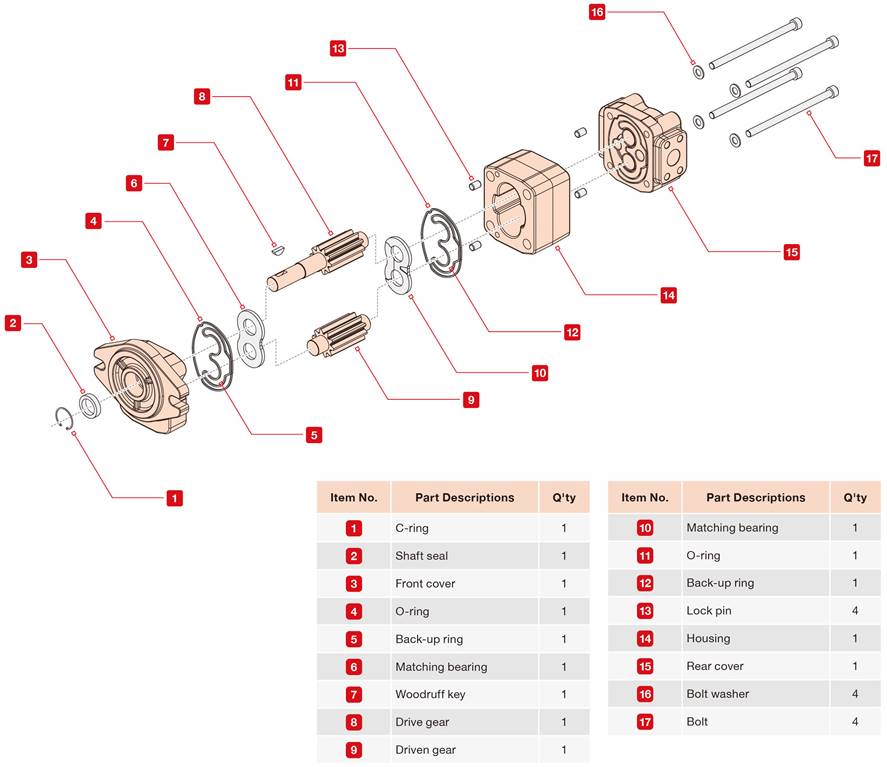

DECOMPOSITION CHARTS

HGP-4A_decom

ADDITIONAL DIMENSION (UNIT : mm)

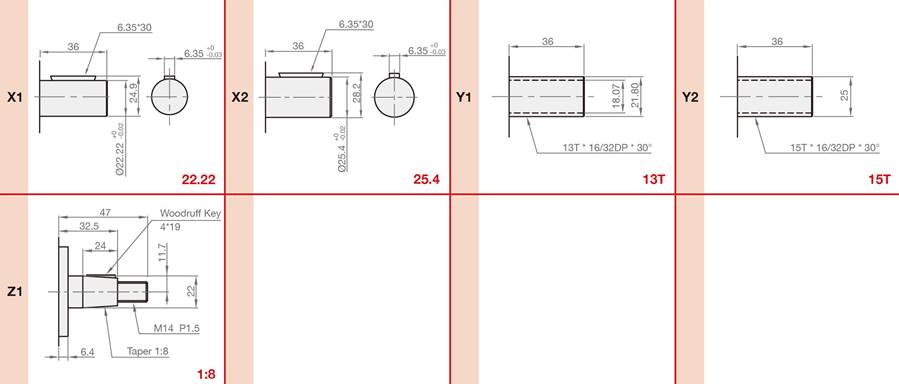

Dimension of Shaft

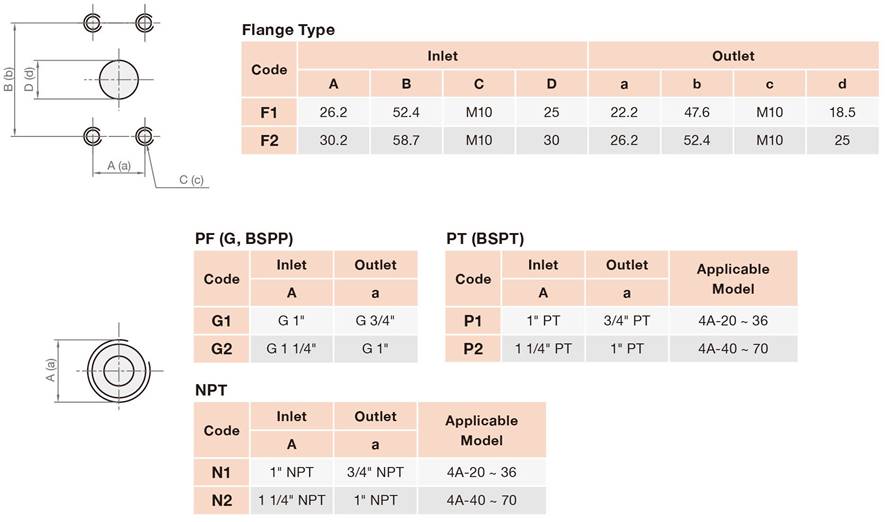

Inlet and Outlet Size

HGP-4A_inlet
