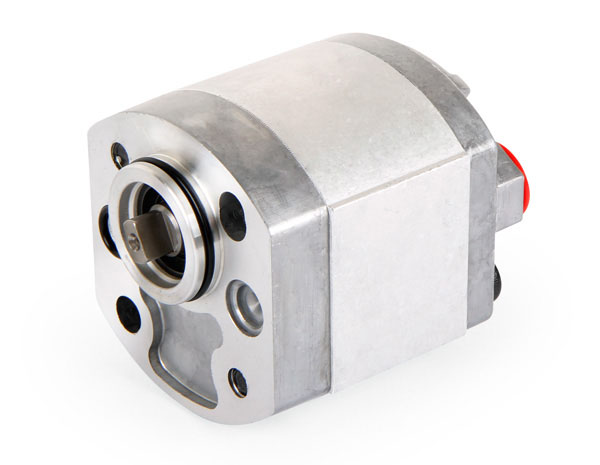

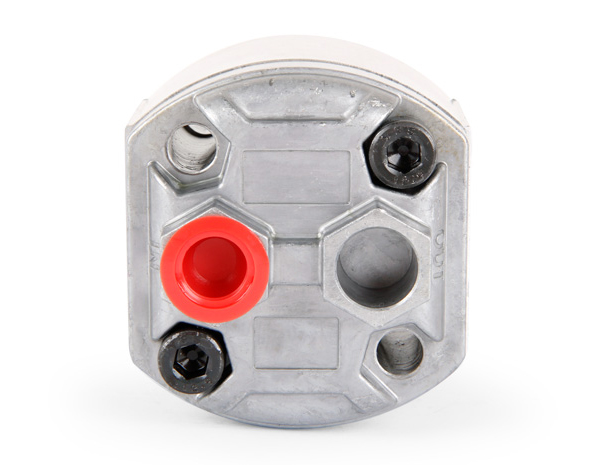

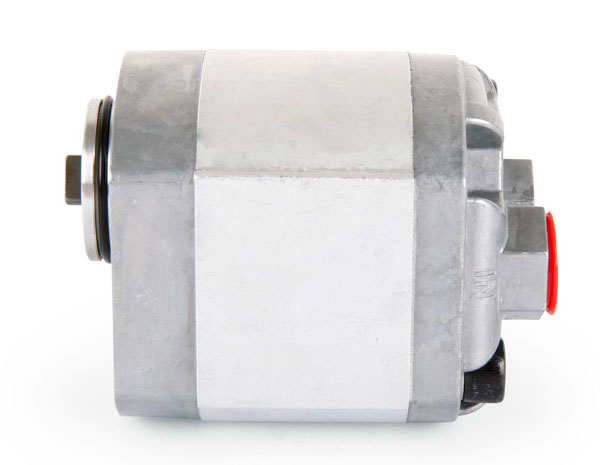

HGP-1AU

MODEL SPEC.

Model	Accurate Displacement Capacity ( cc/rev )	Operating Pressure ( kgf/cm² )	Max. Pressure ( kgf/cm² )	Speed ( r.p.m. )			Weight ( kg )
Model		Operating Pressure ( kgf/cm² )	Max. Pressure ( kgf/cm² )	Rate	Max.	Min.	Weight ( kg )
HGP-1AU-05	0.5	210	250	1800	4500	1000	0.60
HGP-1AU-08	0.8	210	250	1800	4500	1000	0.65
HGP-1AU-1	1	210	250	1800	4500	1000	0.70
HGP-1AU-2	2	210	250	1800	4500	600	0.75
HGP-1AU-26	2.6	210	250	1800	4500	600	0.85
HGP-1AU-3	3	210	250	1800	4500	600	0.86
HGP-1AU-4	4	210	250	1800	4000	600	0.88
HGP-1AU-5	5	210	250	1800	3200	600	0.90
HGP-1AU-6	6	210	250	1800	3200	600	1.00
HGP-1AU-8	7.8	170	210	1800	3200	600	1.10

* HGP-1AU-05 and HGP-1AU-26 do not belong to regular products. Customized service can be provided.

ORDER CODES

HGP-1AU - F 08 L - W

a - b c d - e

a. Model Name : HGP-1AU

b. Mounting : F:flange type

c. Delivery Capacity : 05, 08, 1, 2, 26, 3, 4, 5, 6, 8

d. Rotation Direction : L:counter-clockwise

e. Shaft Type : W:tang shaft

SYMBOLS

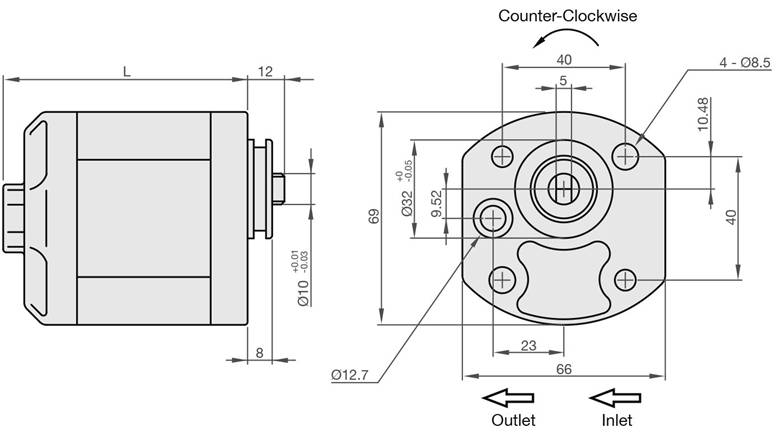

DIMENSION (UNIT : mm)

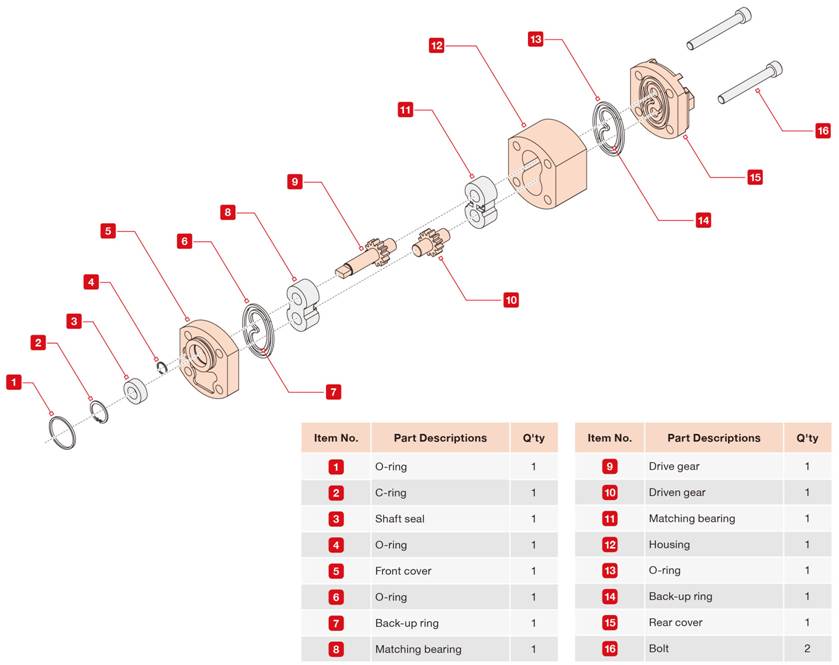

DECOMPOSITION CHARTS
