MODEL SPEC.
Model
Accurate
Displacement
Capacity
( cc/rev )
Operating Pressure
( kgf/cm2 )
Max. Pressure
Max. Speed
( r.p.m. )
Weight
( kg )
HGP-3.5A-F11R
11
240
280
3000
16
ORDER CODES
HGP-3.5A - F 11 R
a - b c d
a. Model Name : HGP-3.5A
b. Mounting : F:flange type
c. Delivery Capacity : 11
d. Rotation Direction : R:clockwise
SYMBOLS

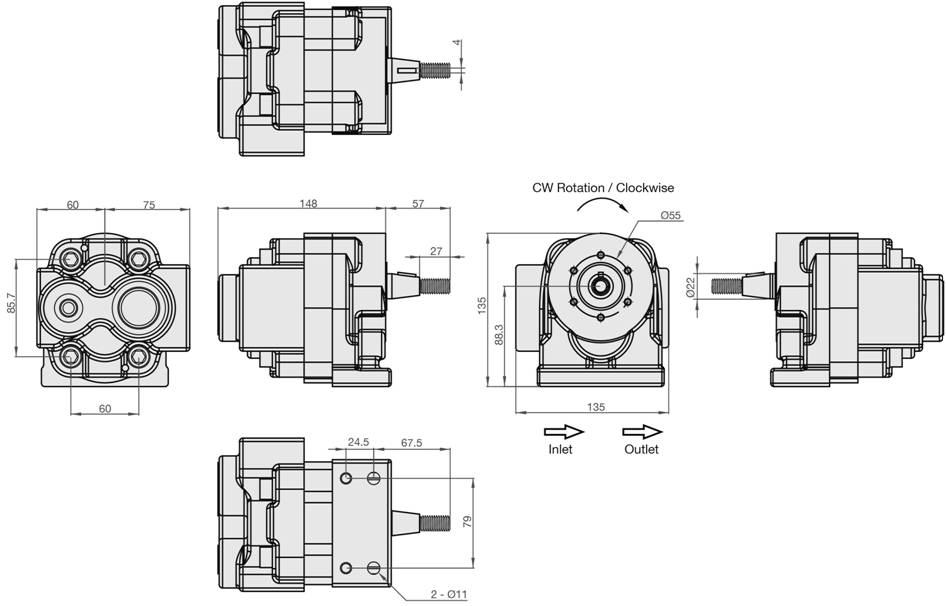

DIMENSION (UNIT : mm)
