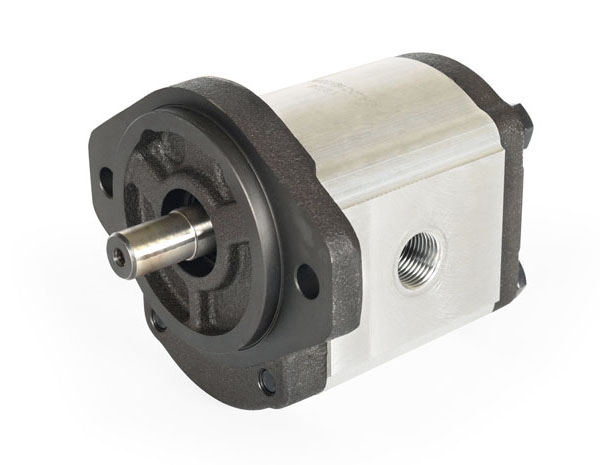

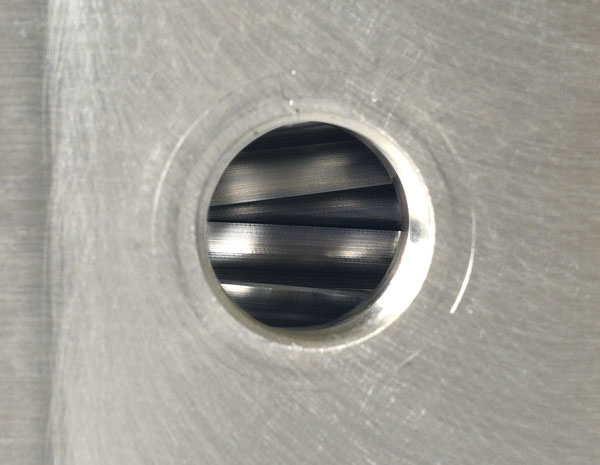

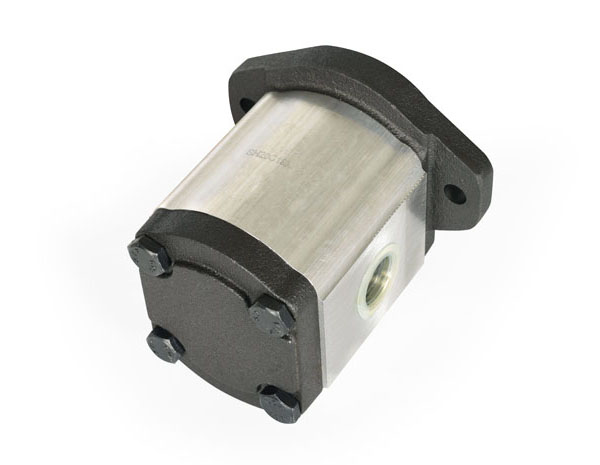

SH20 (Helical Gear Pump)

MODEL SPEC.

Model	Displacement Capacity ( cm³/rev )	Flow ( l/min )		Pressure ( bar )	Max. Speed ( r.p.m. )	Weight ( kg )
Model	Displacement Capacity ( cm³/rev )	1500 min^-1	Max min^-1	Pressure ( bar )	Max. Speed ( r.p.m. )	Weight ( kg )
SH20-6.3	6.3	8.78	20.5	250	3500	3.8
SH20-7	7	9.75	22.78	250	3500	3.8
SH20-8.2	8.2	11.44	26.7	250	3500	3.9
SH20-10	10	13.95	32.55	250	3500	3.9
SH20-11.3	11.3	15.76	36.78	250	3500	4.0
SH20-12	12	16.92	39.48	250	3500	4.1
SH20-14	14	19.95	46.55	250	3500	4.2
SH20-15	15	21.6	36	250	2500	4.2
SH20-16	16	23.04	38.4	250	2500	4.2
SH20-19	19	27.36	45.6	200	2500	4.3
SH20-22	22	31.68	42.24	180	2000	4.6
SH20-25	25	36	48	150	2000	4.7
SH20-6.3	6.3	8.78	20.5	250	3500	3.8
SH20-7	7	9.75	22.78	250	3500	3.8
SH20-8.2	8.2	11.44	26.7	250	3500	3.9
SH20-10	10	13.95	32.55	250	3500	3.9
SH20-11.3	11.3	15.76	36.78	250	3500	4.0
SH20-12	12	16.92	39.48	250	3500	4.1
SH20-14	14	19.95	46.55	250	3500	4.2

ORDER CODES

SH20 A - 6.3 - X085 - Y1 - 2B - G

a b - c - - d - e - f

a. Model Name : SH20

b. Rotation Direction :

A:counter - clockwise

C:clockwise

c. Displacement Capacity : 6.3, 7, 8.2, 10, 11.3, 12, 14, 15, 16, 19, 22, 25

d. Shaft Type :

X1:straight shaft

Y1:spline shaft 9T

Z1:taper shaft

e. Flange Mounting Type :

2B:SAE 2-bolt

f. Inlet and Outlet :

G:G

U:UNF

SYMBOLS

50T PV2R DS HVP_symbol

CURVE

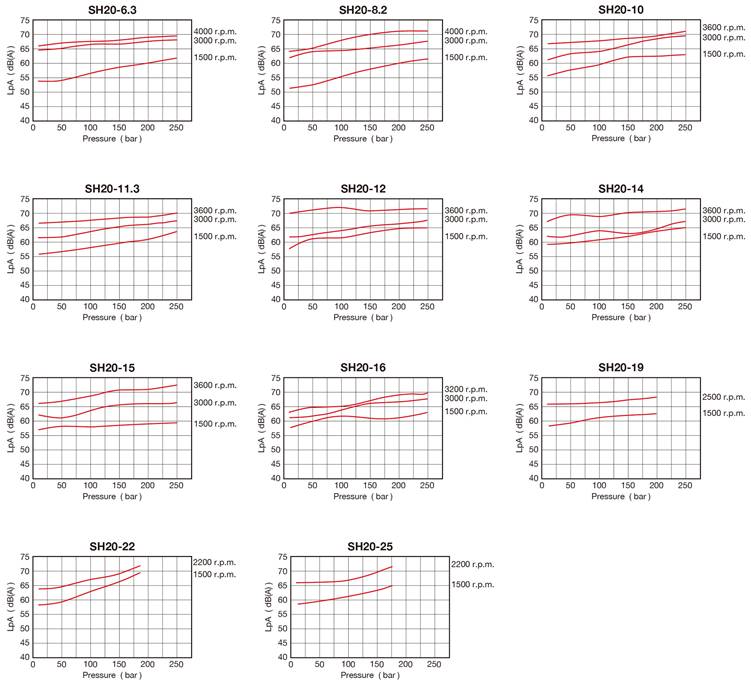

Noise vs. Pressre

Change in the noise level depending on the rotation speed in the working pressure range.

* Oil viscosity : 46 mm2/s at 40°C

Distance between measuring sensor and pump : 1m

Inlet pressure : 0.9~1 bar absolute

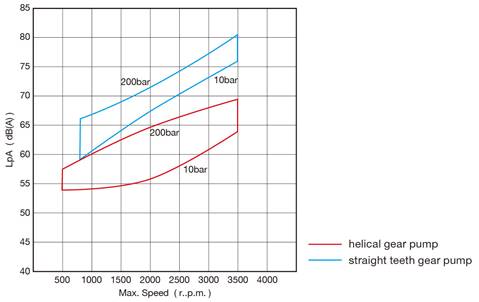

Comparison noise level of a helical gear pump and a conventional straight teeth gear pump

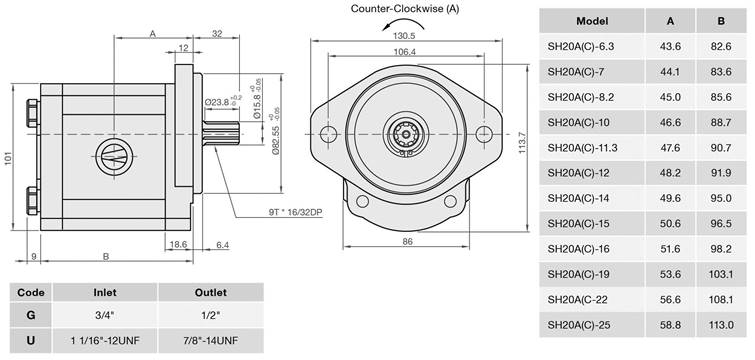

DIMENSION (UNIT : mm)
