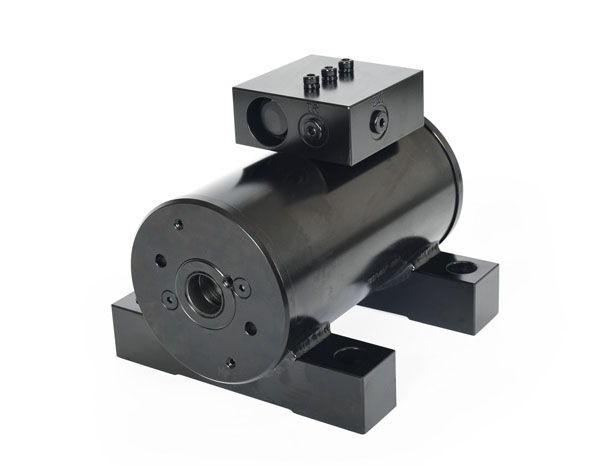

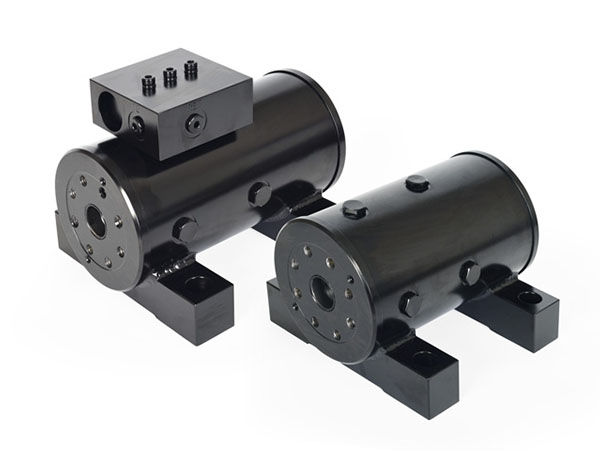

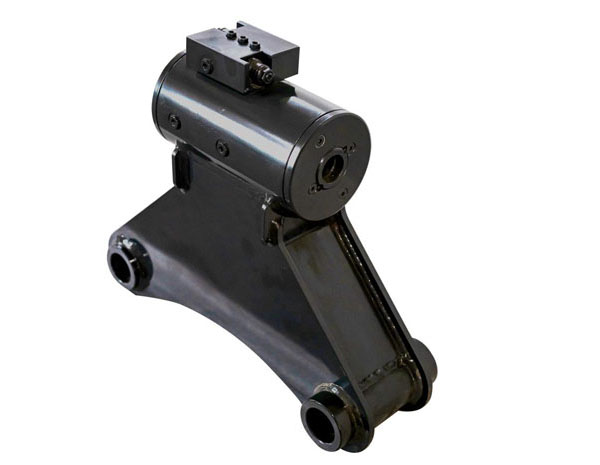

SL20

MODEL SPEC.

Model	4.5	8.2	15	25	39
Drive Torque (Nm)	500	920	1690	2820	4400
Holding Torque (Nm)	1330	2370	4370	7100	10530
Moment Capacity Bracket Type (Nm)	2500	4500	10100	22500	31600
Moment Capacity Flange Mount (Nm)	1300	2400	5400	11300	15800
Radial Capacity (kg)	1380	2130	4180	5570	9520
Axial Capacity (kg)	490	680	990	1400	1760
Displacement 180° (cm³)	131	234	435	725	1076
Weight (kg)	12.5	17.0	30.0	51.5	77.0

ORDER CODES

SL20 - LA - 4.5 - C - 180 - B - M

a - b - c - d - e - f - g

a. Model Name :

SL20:210bar

b. Mounting :

LA:fixed feet

c. Drive Torque :

4.5 : 4500 in-lb ( 500Nm )

8.2 : 8200 in-lb ( 920Nm )

15 : 15000 in-lb ( 1690Nm )

25 : 25000 in-lb ( 2820Nm )

39 : 39000 in-lb ( 4400Nm )

d. Safety Valve :

N:standard

C:with safety valve

e. Angle Rotation (°) :

180

f. Seal :

B:standard

C:customized seals

g. Unit System :

M:metric unit

E:imperial unit

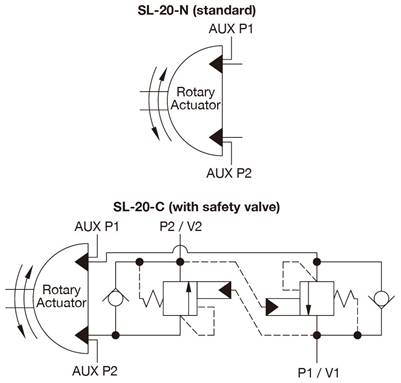

SYMBOLS

一張含有文字, 圖表, 字型, 寫生的圖片

AI 產生的內容可能不正確。

About Safety Valve :

1. Safety valve installed to prevent further rotation in case of hydraulic line failure.

2. Protects rotary actuators from excessive torque loads in the event of load overpressure.

3. Please refer to the specification page for installation dimensions. Pilot pressure ratio 3:1. The set pressure is 200~245 bar.

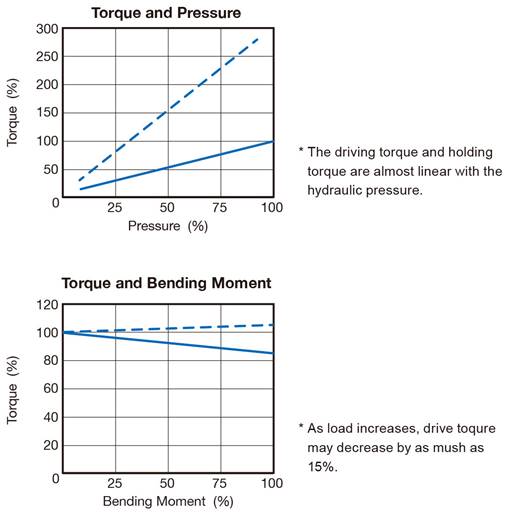

CURVE

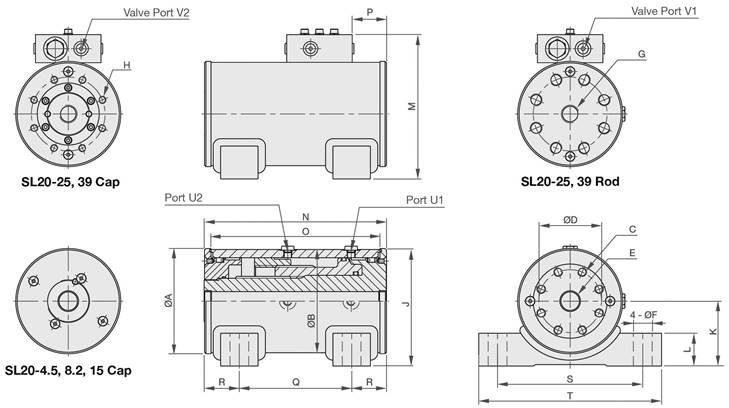

DIMENSION (UNIT : mm)

一張含有圖表, 寫生, 工程製圖, 方案的圖片

AI 產生的內容可能不正確。

Model		4.5	8.2	15	25	39
Rod and End Cap Flange Diameter	ØA	104.2	117	142.4	170	196
Tube Diameter	ØB	101.6	114.3	139.7	165.1	190.5
Rod Flange Threaded Mounting Hole ( mm(inch) )	C	6 - M10x1.5x12.7L ( 3/8-16x0.54L )	8 - M10x1.5x15.2L ( 3/8-16x0.54L )	8 - M12x1.75x19.1L ( 8-1/2-13x0.75L )	8 - M20x2.5x30L ( 3/4-10x1.13L )	10 - M20x2.5x28L ( 3/4-10x1.25L )
Pitch Circle Diameter	ØD	54	65	85	101.6	121
Rod Through Hole	ØE	20	25	25	-	-
Foot Mounting Hole ( mm(inch) )	ØF	M16 (5/8)	M20 (3/4)	M24(1)	M24 (1)	M30 (1,1/4)
Rod Threaded Hole ( mm(inch) )	G	-	-	-	8 - M24 (1)	7 - M30 (1,1/4)
End Cap Flange Threaded Mounting ( mm(inch) )	H	-	-	-	8 - M12x18L ( 1/2-13-0.7L )	8 - M16x23L ( 5/8-11-0.9L )
Pitch Circle Diameter	ØI	-	-	-	108	121
Total Height (Excluding Valve)	J	118.1	134.7	158	193	218.5
Height to Centerline	K	66	76.2	88	108	120.5
Foot Mounting Height	L	34.3	38.1	44.5	63.5	70
Total Height (with Valve)	M	154	171	193	228	254
Total Length	N	188	216	247.5	298.5	337
Tube Length	O	172.7	197.1	229	276	314
Rod Flange to Oil Block	P	30	32	46	49	63
Foot Mounting Length	Q	111.2	139.7	152.4	184	216
Rod Flange to Foot Mounting Hole	R	37.7	37.7	47.3	57.15	59.5
Foot Mounting Width	S	145	152	197	222	267
Total Width	T	178	191	248	279	330
Mounting Ports	U, V	ISO - 11926 / SAE Series of ports - 7/16-20UNF
