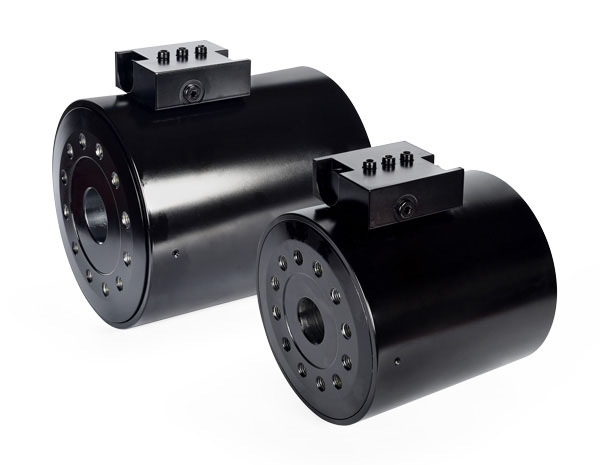

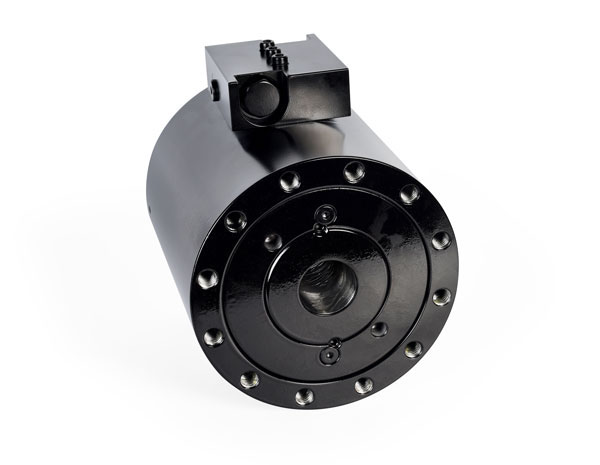

SL10

MODEL SPEC.

Model	5.5	9.5	15	25
Drive Torque (Nm)	620	1070	1690	2820
Holding Torque (Nm)	1900	3800	5600	9300
Moment Capacity Flange Mount (Nm)	2200	5600	9000	11300
Radial Capacity (kg)	1800	3600	4900	6800
Axial Capacity (kg)	1800	3600	4900	6800
Displacement 180° (cm³)	191	365	552	914
Displacement 360° (cm³)	383	732	1104	1828
Weigh 180° (kg)	14	26	43	57
Weight 360° (kg)	19	35	54.5	83

ORDER CODES

SL10 - RF - 5.5 - N - 360 - B - M

a - b - c - d - e - f - g

a. Model Name :

SL10:210bar

b. Mounting :

RF:rear flange

c. Drive Torque :

5.5 : 5500 in-lb ( 620 Nm )

9.5 : 9500 in-lb ( 1070 Nm )

15 : 15000 in-lb ( 1690 Nm )

25 : 25000 in-lb ( 2820 Nm )

d. Safety Valve :

N:standard

C:with safety valve

e. Angle Rotation (°) :

180

360

f. Seal :

B:standard

C:customized seals

g. Unit System :

M:metric unit

E:imperial unit

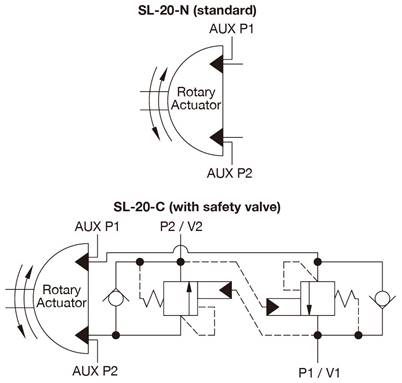

SYMBOLS

一張含有文字, 圖表, 字型, 寫生的圖片

AI 產生的內容可能不正確。

About Safety Valve :

1. Safety valve installed to prevent further rotation in case of hydraulic line failure.

2. Protects rotary actuators from excessive torque loads in the event of load overpressure.

3. Please refer to the specification page for installation dimensions. Pilot pressure ratio 3:1. The set pressure is 200~245 bar.

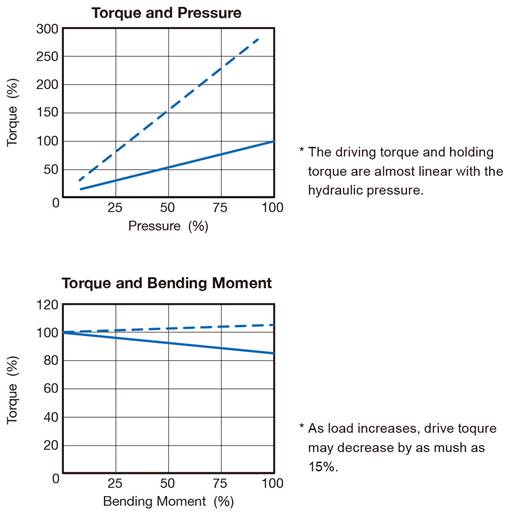

CURVE

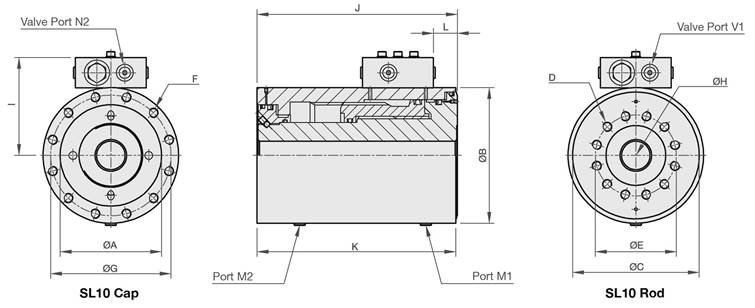

DIMENSION (UNIT : mm)

一張含有寫生, 圖畫, 設備, 圖表的圖片

AI 產生的內容可能不正確。

Model		5.5	9.5	15	25
End Cap Mounting Surface Diameter	ØA	101.6	127	148	185
Tube Diameter	ØB	135	170	198	226
Mounting Rod Flange Diameter	ØC	105	134	157	186
Rod Flange Threaded Mounting Hole ( mm(inch) )	D	12 - M10x1.5x15.2L ( 3/8-16x0.63L )	12 - M12x1.75x19.1L ( 1/2-13x0.75L )	12 - M12x1.75x19.1L ( 1/2-13x0.75L )	12 - M16x2x25.4L ( 5/8-11x1L )
Rod Flange Threaded Mounting Hole Pitch Circle Diameter	ØE	80	101.6	127	139.7
Tube Mounting Surface Threaded Hole ( mm(inch) )	F	12 - M10x1.5x18L ( 3/8-16x0.63L )	12 - M12x1.75x19.1L ( 1/2-13x0.75L )	12 - M12x1.75x19.1L ( 1/2-13x0.75L )	12 - M12x1.75x19.1L ( 1/2-13x0.75L )
Tube Mounting Surface Threaded Pitch Circle Diameter	ØG	117	151	175	203
Rod Through Hole	ØH	21.4	35.7	45.7	66.7
Height to Centerline	I	97.8	115	129	143
Total Length 180°	J	156	184	224	241
Total Length 360°	J	212	258	311	346
Tube Length 180°	K	154	182	221	239
Tube Length 360°	K	211	256	308	344
Rod Flange to Oil Block 180°	L	21.3	27.9	34	42.4
Rod Flange to Oil Block 360°	L	24.6	40.6	60.2	70.4
Mounting Ports	M1, M2	117	151	175	203
Valve Ports	N1, N2	ISO - 11926 / SAE Series of ports - 7/16-20UNF ISO - 1179-1 / BSPP"G" Series of ports - 1/8 See drawings for details.
