Model
|
25
|
42
|
65
|
95
|
125
|
|
Mounting Flange Diameter
|
ØA
|
235
|
280
|
315
|
355
|
396
|
|
Position Diameter
|
ØB
|
175
|
205
|
230
|
260
|
290
|
|
Rod and End Cap Flange Diameter
|
ØC
|
154.7
|
183.4
|
208.8
|
234.2
|
262.6
|
|
Tube Diameter
|
ØD
|
152.4
|
177.8
|
203.2
|
228.6
|
254
|
|
Rod Flange Threaded Mounting
Hole ( mm(inch) )
|
E
|
12
- M16x2x24L
(
5/8-11x0.94L )
|
12
- M20x2.5x30L
(
3/4-10x1.13L )
|
12
- M22x2.5x33L
(
12-7/8-9x1.31L )
|
12
- M24x3x36L
(
1-8x1.38L )
|
12
- M27x3x41L
(
1 1/8-7x1.69L )
|
|
Pitch Circle Diameter
|
ØF
|
127
|
150
|
171.5
|
197
(7.75)
|
216
|
|
Mounting Flange Hole (Bolt Size)
|
ØG
|
M12
|
M16
|
M20
|
M22
(7/8)
|
M24
|
|
Pitch Circle Diameter
|
ØH
|
205
|
245
|
275
|
310
|
345
|
|
Centerline to Valve Top
|
I
|
106
|
118
|
131
|
144
|
156
|
|

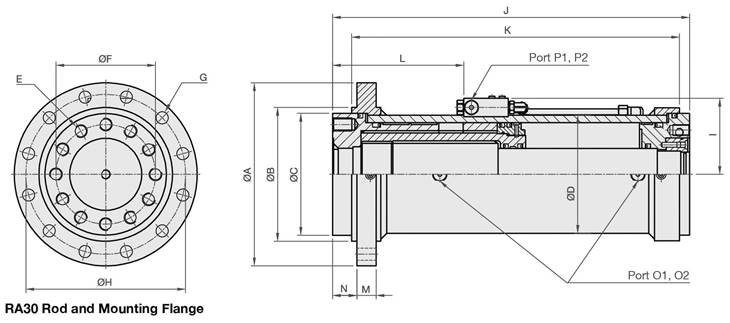

Total Length 180°
|
J
|
323
|
365
|
412.5
|
475
|
524
|
|
Total Length 360°
|
J
|
470
|
538
|
615
|
705
|
776
|
|
Non-rotating Total Length 180°
|
K
|
283
|
323
|
363
|
431
|
463
|
|
Non-rotating Total Length 360°
|
K
|
430
|
496
|
565
|
661
|
715
|
|
Rod Flange to Oil Block 180°
|
L
|
134
|
143
|
130
|
152
|
185
|
|
Rod Flange to Oil Block 360°
|
L
|
157
|
197
|
232
|
267
|
308
|
|
Mounting Flange Width
|
M
|
25.9
|
30.9
|
33
|
40.1
|
41.9
|
|
Rod Flange to Mounting Flange
Surface
|
N
|
32
|
35.1
|
41.9
|
40.1
|
53.1
|
|
Mounting Ports
|
O1,
O2
|
127
|
150
|
171.5
|
197
(7.75)
|
216
|
|
Valve Ports
|
P1,
P2
|
ISO
- 11926 / SAE Series of ports - 7/16-20UNF
ISO
- 1179-1 / BSPP"G" Series of ports - 1/8
See
drawings for details.
|
|
Model
|
25
|
42
|
65
|
95
|
125
|
|
Rod and End Cap Flange Diameter
|
ØA
|
154.7
|
183.4
|
208.8
|
234.2
|
262.6
|
|
Tube Diameter
|
ØB
|
152.4
|
177.8
|
203.2
|
228.6
|
254
|
|
Rod Flange Threaded Mounting
Hole ( mm(inch) )
|
C
|
12
- M16x2x24L
(
5/8-11x0.94L )
|
12
- M20x2.5x30L
(
3/4-10x1.13L )
|
12
- M22x2.5x33L
(
7/8-9x1.31L )
|
12
- M24x3x36L
(
1-8x1.38L )
|
12
- M27x3x41L
(
1 1/8-7x1.69L )
|
|
Pitch Circle Diameter
|
ØD
|
127
|
150
|
171.5
|
197
|
216
|
|
End Cap Flange Threaded Mounting
Hole ( mm(inch) )
|
ØE
|
12
- M12x1.75x18L
(
1/2-13x0.75L )
|
12
- M16x2x24L
(
5/8-11x0.94L )
|
12
- M20x2.5x30L
(
3/4-10x1.13L )
|
12
- M22x2.5x33L
(
7/8-9x1.31L )
|
12
- M24x3x36L
(
1-8x1.5L )
|
|
Pitch Circle Diameter
|
ØF
|
121
|
133
|
152.4
|
171.5
|
190.5
|
|
Foot Mounting Hole
|
ØG
|
M20
|
M22
|
M24
|
M27
|
M30
|
|
Total Height (Excluding Valve)
|
H
|
186
|
212
|
240
|
276
|
305
|
|
Height to Centerline
|
I
|
95
|
108
|
122
|
140
|
154
|
|
Foot Mounting Height
|
J
|
70
|
78
|
88
|
105
|
110
|
|
Total Height (With Valve)
|
K
|
201
|
226
|
271
|
283.5
|
310
|
|

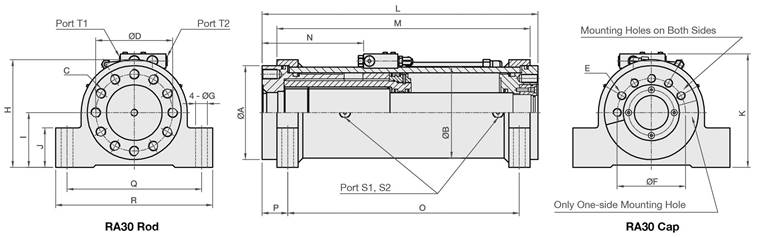

Total Length 180°
|
L
|
323
|
365
|
412.5
|
475
|
524
|
|
Total Length 360°
|
L
|
470
|
538
|
615
|
705
|
776
|
|
Non-rotating Total Length 180°
|
M
|
286
|
323
|
363
|
431
|
463
|
|
Non-rotating Total Length 360°
|
M
|
433
|
496
|
565
|
661
|
715
|
|
Rod Flange to Oil Block 180°
|
N
|
134
|
143
|
130
|
152
|
185
|
|
Rod Flange to Oil Block 360°
|
N
|
157
|
197
|
232
|
267
|
308
|
|
Foot Mounting Length 180°
|
O
|
248
|
281
|
314
|
374
|
400
|
|
Foot Mounting Length 360°
|
O
|
395
|
454
|
516
|
604
|
652
|
|
Rod Flange to Foot Mounting Hole
|
P
|
43.9
|
50
|
56.9
|
59.9
|
74.2
|
|
Foot Mounting Width
|
Q
|
230
|
260
|
300
|
340
|
380
|
|
Total Width
|
R
|
268
|
310
|
350
|
400
|
447
|
|
Mounting Ports
|
S1,
S2
|
ISO
- 11926 / SAE Series of ports - 7/16-20UNF
ISO
- 1179-1 / BSPP"G" Series of ports - 1/8
See
drawings for details.
|
|
Valve Ports
|
T1,
T2
|
