MODEL SPEC.
Model
Flow
( l/min )
Max. Pressure
( kgf/cm2 )
Rated
Voltage
Rated Current
(A)
HP640-6P8D1
3~60
15
DC12V
3.5~4.5
HP640-6P8D2
DC24V
1.8~2.5
Input
( w )
Rated Speed
( r.p.m. )
Noise
( dB(A) )
Weight
( kg )
48
2800
70
4.73
50
ORDER CODES
HP640 - 6 P 8 D1
a - b c d e
a. Model Name : HP640
b. Conneciton Size : 6:3/4”
c. Thread :
B:BSPP
N:NPT
T:PT
P:PF
d. Fan Motor Size : 8”
e. Rated Voltage :
D1:DC12V
D2:DC24V
SYMBOLS
PERFORMANCE CURVES

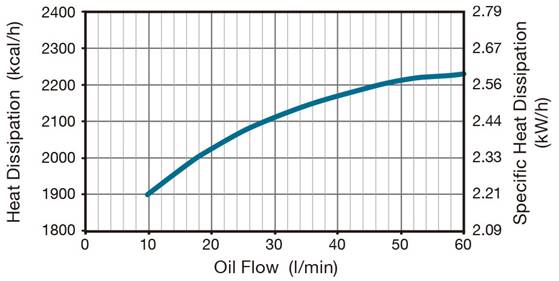

Cooling Capacity

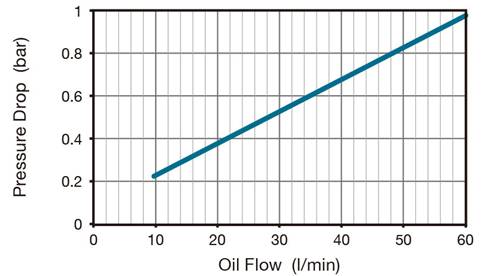

Pressure Differential ∆p
* On the condition of oil viscosity at 32mm2/s.

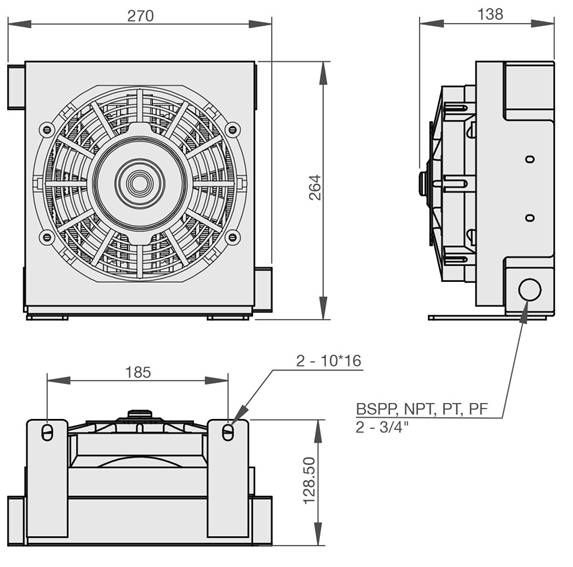

DIMENSION (UNIT : mm)
